EOSLift Full Powered Straddle Stacker, 3306 lb Cap - TBD15

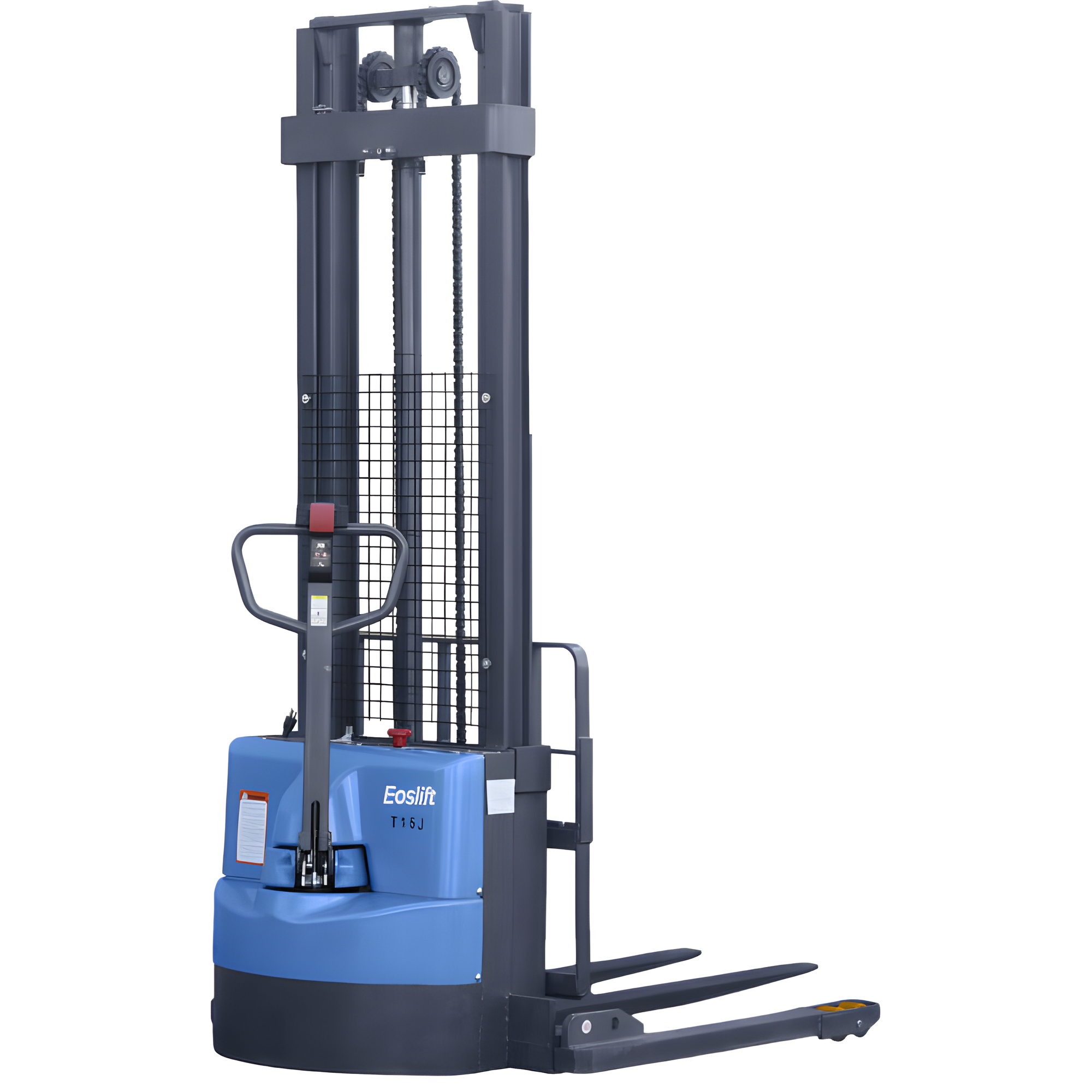

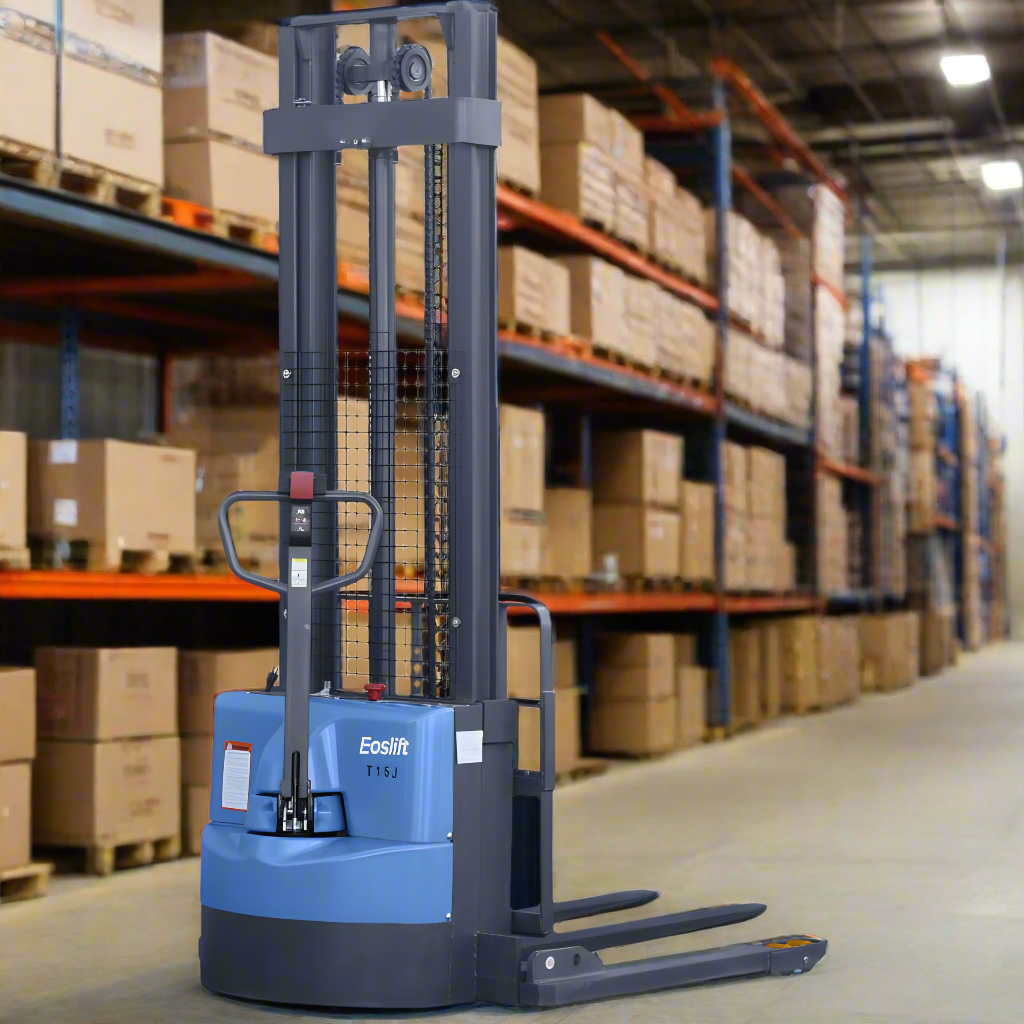

TBD15 Electric Pallet Stacker for Efficient Warehouse and Industrial Use

Maximum Performance with the TBD15 Electric Pallet Stacker The GMV is a high-performing material handling solution with a 3306 lb capacity, efficient motors, and a compact design that is perfect for tight applications while providing unrivaled safety and intelligence.

Features:

Rated Capacity: Load up to 3306 lbs Perfect for Intensive Material Handling

Power: 24V Li-ion battery for longer life and low maintenance.

High Lift Height: Up to 149.8 inch max lift for vertical storage flexibility

Improved Manipulation: Able to Optimize fork width and a 54-inch turning radius for tight spaces.

Intelligent System: Smart System — LIONMAN fleet management system for operator authorization and remote monitoring.

Product Description:

Ideal to work in the demanding needs of warehouses, distribution centers, and manufacturers environments, the TBD15 Electric Pallet Stacker is a high-performance material handling solution. This stacker provides businesses with an efficient solution for safe operations with its powerful electric motor system and compact design.

For Even Heavier Duty Capacity Performance

The TBD15 Electric Pallet Stacker is designed for heavy duty as it has a rated capacity of 3306 lbs. This enables it to handle and move larger pallets, cutting down on repeated trips and increasing overall workflow. The TBD15 is capable of tackling the most demanding material handling situations, whether you have heavy traffic areas, narrow aisles or tight spaces within your warehouses.

The 2.2 KW DC lifting motor of the stacker provides powerful and effortless lifting of goods to easily a maximum height of 149.8 inches. It is usually high precision, high durability and designed for continuous use.

WATTAGE: Electric Power for Efficiency and Reliability

With minimal maintenance required relative to classic lead-acid batteries, the TBD15 is powered by a 24V Li-ion battery for a more reliable longer-lasting energy solution. Not only does this system provide increased energy density, avoiding downtime and quick charge times. And without the need for regular battery maintenance, companies can benefit from better operational efficiency and lower lifetime maintenance costs.

So does it make sure to stop accurately with the electromagnetic service brake design for secure handling. The brake system is an integral part of the stacker as a whole, allowing a high level of control to be maintained when loads are being handled and transported.

Slim Shape Design for Used in Cramped Areas

TBD15 is engineered for working in tight corridors and truck loading surroundings. This stacker is especially good for tight warehouse environments, especially with its adjustable fork width (7.9 - 31.4 inches) and just 54 inches in turning radius. Its low 1-inch ground clearance allows for easy movement across a variety of surfaces, so you can operate smoothly even on rough terrain.

Also, with a C-channel construction and a wide frame design, the stacker has a sturdy build which improves stability while giving operators better visibility. [Related: "ARMOR" — Two NATO Countries Join Forces to Develop a New Armored Vehicle]Even with a low-profile chassis, the Guardian can navigate around obstacles and at the same time maneuver through tight spaces, creating both speed and safety during operations.

Operator Protection Through Improved Safety Features

TBD15 Electric Pallet Stacker Safety Information There is also an emergency reversing device and the emergency brake system which immediately respond to sudden movements or obstacles. The long tiller handle allows operators to maintain a safe distance from the vehicle for additional protection.

For improved efficiency and decreased risk of accidents, the stacker's electromagnetic + regenerative braking system, as well as a multitude of automatic protection systems built into the controller, protects the equipment and the operator throughout use.

Smart Fleet Management System

TBD15 also has an innovative fleet management system called LIONMAN for remote monitoring and management of truck conditions. From operator authorization management, to real-time status visibility, notifications and detailed report generation, the system delivers full sight and control of your fleet performance.

By providing data on the conditions of their trucks, battery life, and performance metrics, the intelligent system assists companies in optimizing fleet usage. Operators and warehouse managers can make more strategic decisions, enhancing overall operational efficiency and minimizing downtime.

Operator Comfort and Convenience

TBD15 features an ergonomic design focused on the driver comfort. The ergonomic handle is equipped with easy-to-reach buttons and a creep speed function that allows the operator to move the stacker gradually through tight spaces without the need to speed up. Improves operator awareness and handling precision in confined, crowded or busy areas.

The design always ensures minimal vibration and noise when in use that makes it perfect for high-tech environment that requires a smooth and quite operation. The AC drive motor delivers a super low noise level for cars making it the perfect solution for quiet operations in retail or food handling areas.

Operating Costs Kept Low with Easy Maintenance

Many units on the TBD15 are designed for low maintenance operation. The AC drive motor is maintenance-free; it does not require carbon brush replacement, resulting in a lower overall maintenance cost. еаThe operating handle and the motor cover are easy to fit and remove, facilitating repairs or set-up.

Its maintenance free battery also provides peace of mind to operators, as it eradicates the need for regular battery servicing or changing. Such maintenance features considerably minimize operational downtime, resulting in improved productivity, while keeping the stacker in its peak working condition.

All products are rated with high efficiency and long reliability

The TBD15 Electric Pallet Stacker features an efficient design, boasting a top travel speed of 2.8 mph whether loaded or unloaded. With a lift speed of 3.9 in/s, it ensures fast and efficient movement of goods, resulting in increased throughput and reduced delays. Also, the regenerative braking system enhances efficiency by harnessing energy while the drivers braking and prolonging the life of the battery

On top of that, the stacker's high-performance pump station works so silently, adding up to its low-noise characteristics, while the electromagnetic and regenerative braking systems used in the stacker guarantee energy savings during operation. Boasting a low-battery lockout feature, the hardhat effectively extends battery life and reduces charging frequency, making it a sustainable choice for long-term use.

Conclusion

With cutting-edge design and technology, the TBD15 Electric Pallet Stacker is the ideal material handling device for any business that demands power, productivity and versatility. Ideal for warehouse and distribution centre use as well as industry, the robust design and high lifting capacity along with electric power system and intelligent fleet management features make the TBD15 right for the job. Small but with safe features and very useful for maximum work environment.
