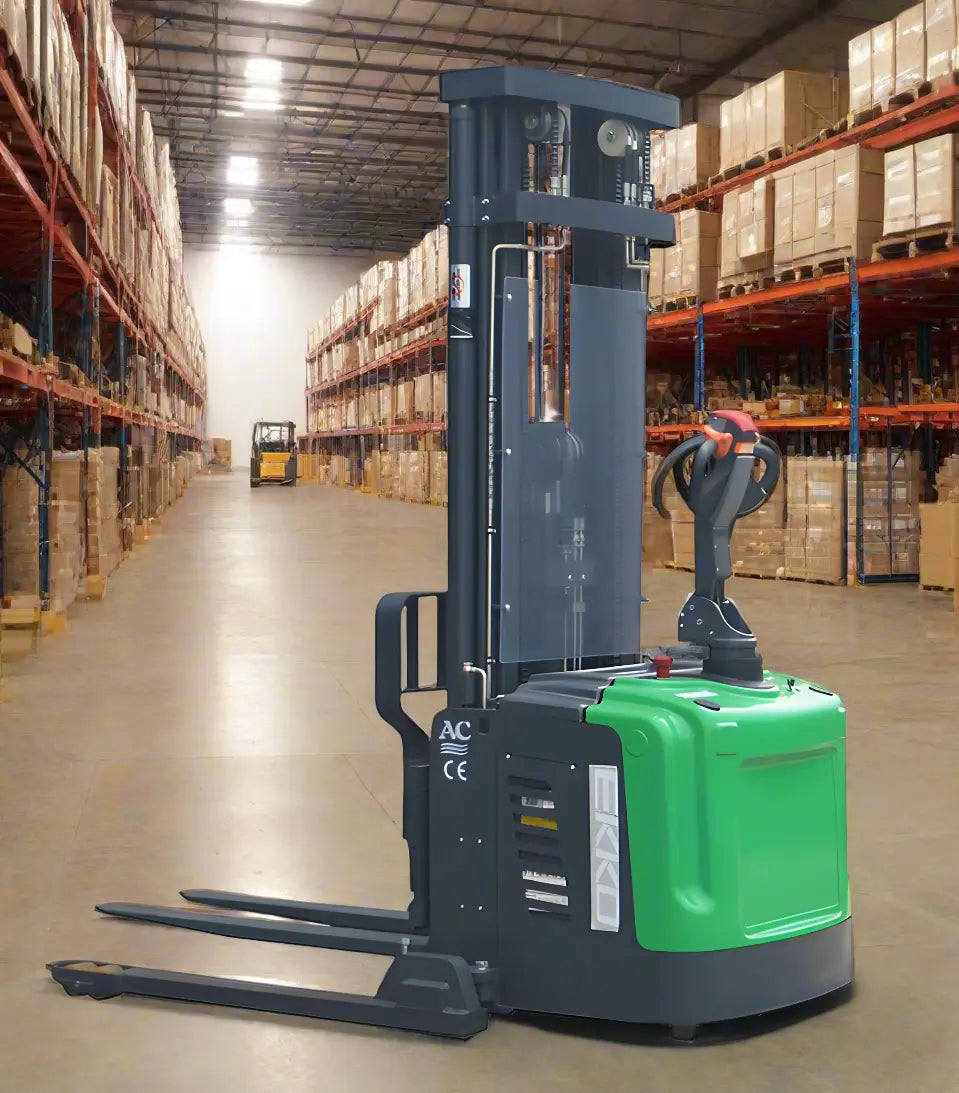

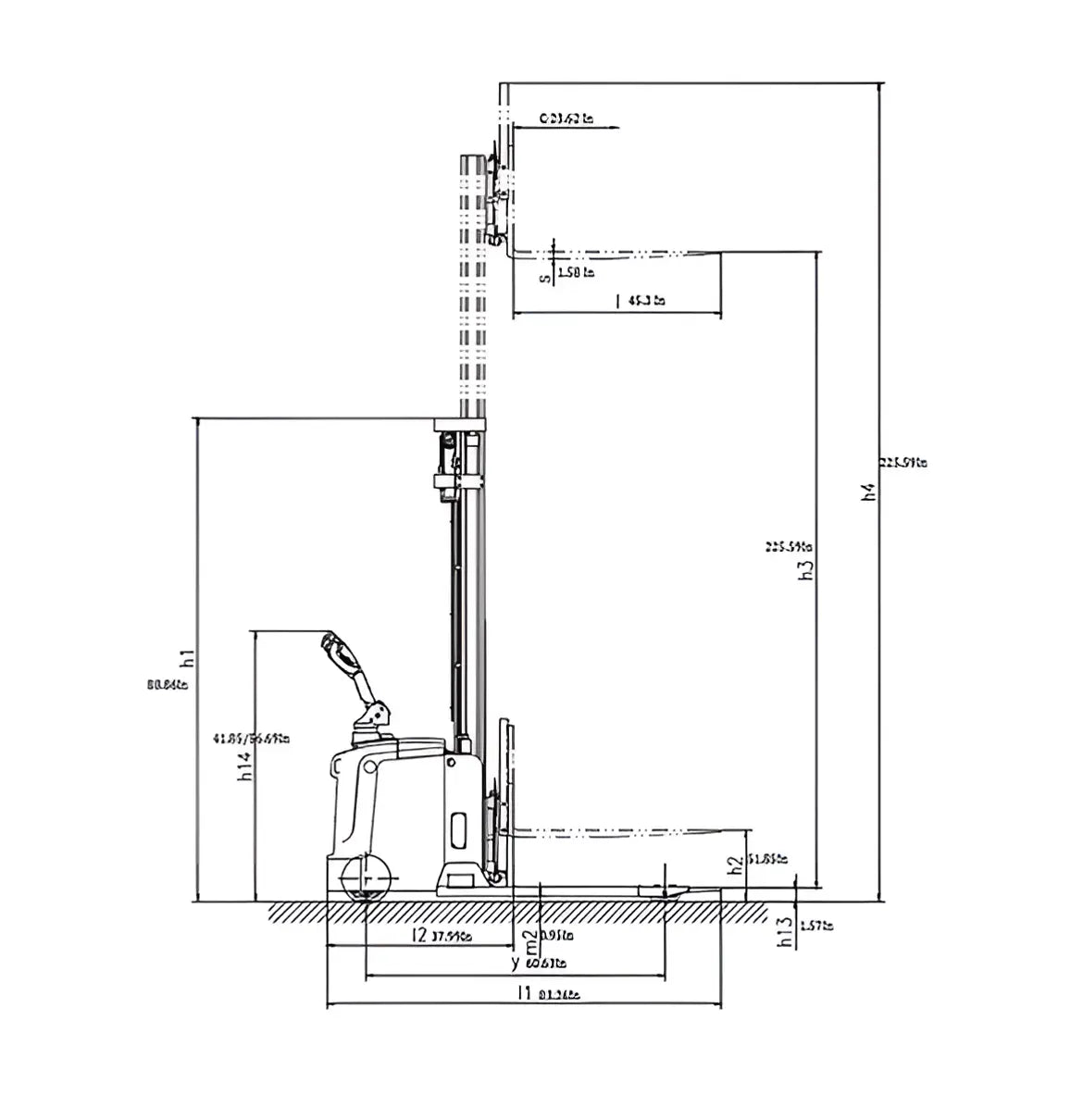

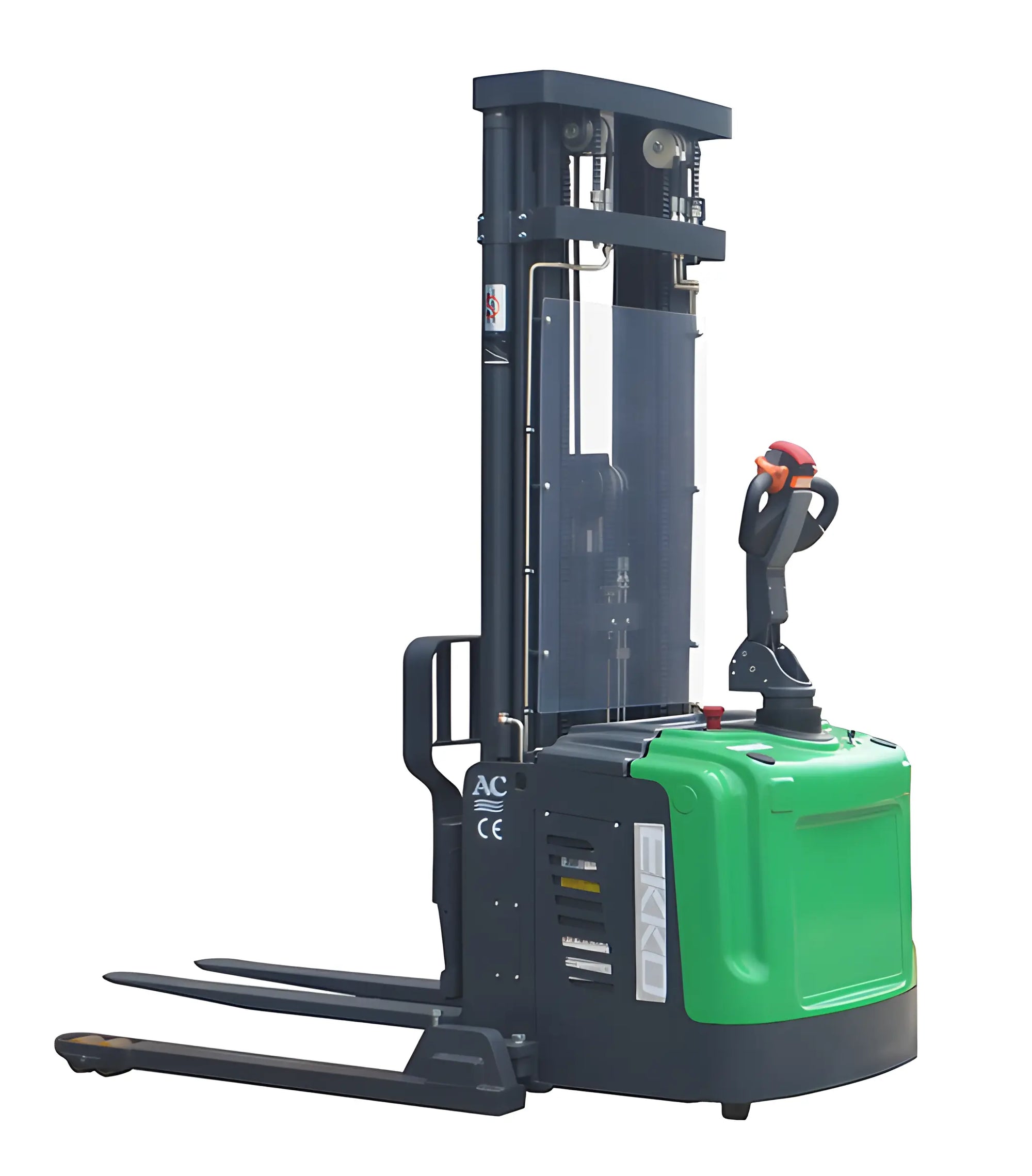

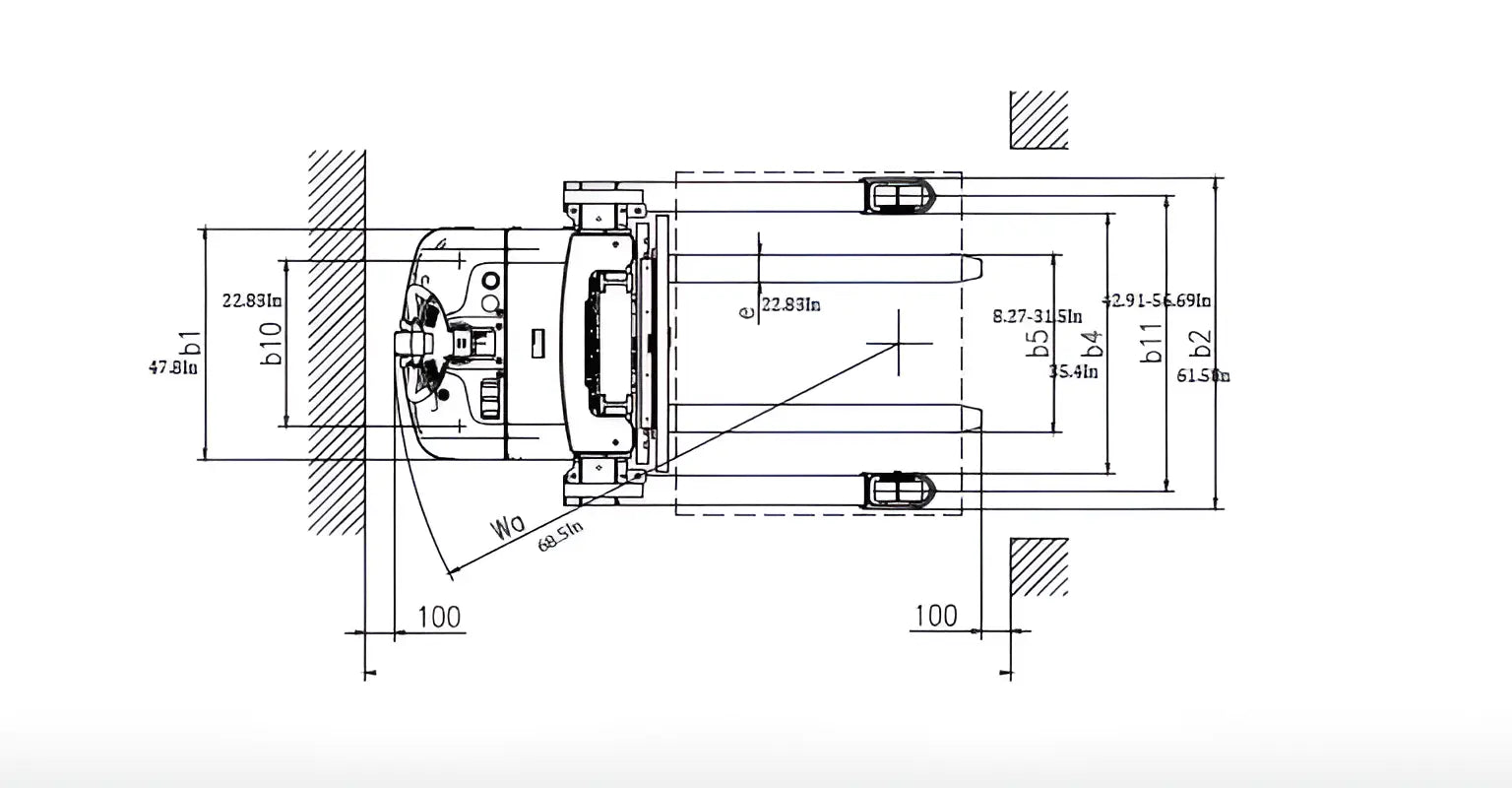

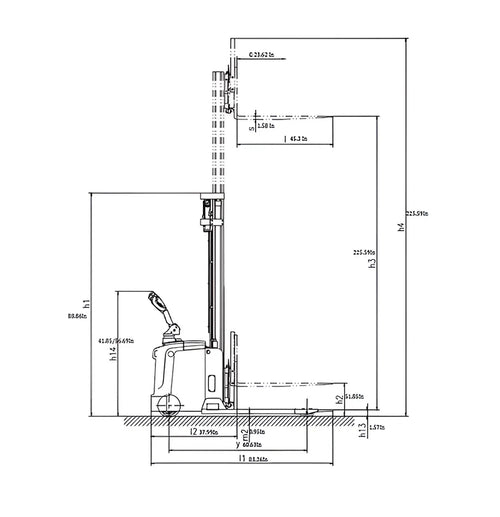

EKKO EB16EAS-189Li straddle stacker with green body and black lifting forks for material handling EKKO EB16EAS-189Li straddle stacker with green body and black forks in a warehouse aisle Technical blueprint drawing of EKKO EB16EAS-189Li straddle stacker with detailed dimensions Technical top view drawing of EKKO EB16EAS-189Li straddle stacker with detailed measurements

EKKO

EKKO EB16EAS-189Li | Lithium Straddle Stacker | Side-Shifting | 189" Lift Height | 4400 lb Capacity

EKKO EB16EAS-189Li | Lithium Straddle Stacker | Side-Shifting | 189" Lift Height | 4400 lb Capacity

Regular price $17,858.00
Regular price $18,798.00 Sale price $17,858.00
Sale Sold out
Shipping calculated at checkout.

or

Leave us an email.

All fields are required unless otherwise indicated.

The EKKO EB16EAS-189LI Electric Straddle Stacker offers exceptional versatility for various material-handling tasks. With a 4,400 lb. load capacity and 189” maximum lifting height, this stacker is ideal for truck loading, unloading, stockroom management, and warehouse operations. Its side-shifting capabilities, adjustable forks, and robust construction ensure smooth performance in diverse environments, making it a valuable asset for any operation.

Free shipping on orders over $2,500

No sales tax

ModelEB16EAS-189LI
Load Capacity4400 lbs
Max Lifting Height189 in
Fork Length45.3 in
Service Weight3520 lbs
View full details

EKKO EB16EAS-189Li: A Versatile Lithium Straddle Stacker

Features:

  • High Capacity: Lifts up to 4,400 lbs, perfect for heavy material handling.

  • Side-Shifting: Smooth lateral movement for maximum precision in tight spaces.

  • Adjustable Forks: Fork width adjustable from 8.27" to 31.5", handles different loads freely.

  • Ergonomic Design: Ergonomic handle and controls for operator comfort.

  • Durable Construction: Premium steel and robotic welding for durability and strength.

Product Description:

From Data to Material Handling Solution — Not to mention the Industry 4.0 era

It’s designed to give you the power, maneuverability and precision you need for all your material-handling applications. A forklift, reach truck and walkie stacker in one unit to load and unload trucks, stockrooms, manufacturing floors and improve warehouse performance. From tight spaces to heavy loads, the EB16EAS-189LI loads and lifts with precision and efficiency.

Notable Lineman and Elevation Capacity

Palettis EKKO EB16EAS-189LI has a solid load capacity of 4,400 lbs. With a maximum lifting height of 189 inches, it can reach high shelves and stack materials where they belong. A free lift height of 51.85 inches allows you to stack the forks or cargo above ground level without having to raise the forks.

Versatile Side-Shifting and Adjustable Forks

Another great feature of this stacker is its side-shifting ability. This allows for side movement of the load without having to reposition the entire stacker, thus improving accuracy and perfect for narrow warehouse aisles and cramped working environments. And the adjustable fork width (from 8.27” to 31.5”) allows the stacker to handle different pallet sizes, across any warehouse or manufacturer.

Strong in Performance / Power and EfficiencyThe machine has a 24V AC drive motor (1.5 kW) and 24V lifting motor (3kw) so it’s a powerful and energy efficient helper. Another plus is the stacker’s EPS (Electric Power Steering) so you can operate with least physical effort and minimal fatigue. The ergonomic handle and controls provide comfort and efficiency throughout the shift and the 90-degree articulation adds to both of those.

Built to Last Long

Made with premium steel and robotic welding, the EKKO EB16EAS-189LI is durable and perfect for daily use in multiple applications. Whether on smooth warehouse floors or rough terrains, this stacker runs continuously without interruption, reducing downtime and repair costs. Its solid construction means long service life so it’s a smart investment for any operation.

Desktop and Space Saving

This stacker is compact so it can run in small areas with ease. And more than that, the turning radius of the vehicle is 68.5 inches so it’s more maneuverable in tight spaces like loading docks or congested warehouse aisles. The adjustable legs (38.06” to 51.81”) also allows the stacker to meet different loading dock heights, making it more versatile.

Reliable and Safe Operations

Equipped with advanced safety features, the EKKO EB16EAS-189LI prioritizes safety to protect operators and equipment. The stacker has ergonomic controls and smooth power steering for precise handling and minimizes the risk of an accident and damage to materials. And it’s backed by 3-year limited warranty so your investment is protected against unforeseen repairs.

In a Nutshell: The Solution for Your Material Handling NeedsEKKO Model EB16EAS-189LI Electric Straddle Stacker For Your Material Handling Needs You can add to a stacker’s versatility with its ability to handle heavy loads, operate in tight spaces or maneuver high rack areas faster and more efficiently. With side-shifting, adjustable forks and durable construction the EKKO EB16EAS-189LI is perfect for companies looking to increase productivity and efficiency in their warehouses and distribution centers.

189" Lift Height

The EKKO EB16EAS-189Li stands out with its 189” lift height so you can handle tall loads with ease. This is crucial in warehouse settings where space is at a premium. With its robust design you can rely on this straddle stacker to lift 4400 lbs, safe and efficient. So whether you need to stack pallets high or retrieve items from high locations this stacker doesn’t delay.

Side-Shifting

Besides its high lifting capabilities the EKKO EB16EAS-189Li has exceptional side-shifting. This allows you to move loads sideways without repositioning the whole vehicle. It’s perfect for narrow aisles, saving space and increasing productivity. So operators can save time as they adjust load positions, overall workflow.

Lithium Power

One of the features of the EKKO EB16EAS-189Li is its lithium battery system. This technology provides long lasting power and less downtime as it charges fast. Compared to lead-acid batteries lithium requires less maintenance and its eco-friendly design has a lower environmental impact. So businesses can handle their material handling tasks efficiently and sustainably.

Powerful Performance with 189" Lift Height

The EKKO EB16EAS-189Li stands out due to its impressive 189-inch lift height, making it capable of handling tall loads effortlessly. This feature proves essential in warehouse settings, where vertical space is a premium. Because of its robust design, operators can rely on this straddle stacker to elevate loads up to 4400 pounds, ensuring efficiency and safety in operations. So, whether you need to stack pallets high or retrieve items from elevated locations, this stacker delays no performance.

Exceptional Side-Shifting Capability

Besides its high lifting abilities, the EKKO EB16EAS-189Li offers remarkable side-shifting functionality. This capability allows users to maneuver loads sideways without repositioning the entire vehicle. It is particularly beneficial in narrow aisles, optimizing space and increasing productivity. Therefore, operators can save time as they effortlessly adjust load positions, enhancing overall operational workflow.

Environmentally Friendly Lithium Power

One of the highlights of the EKKO EB16EAS-189Li is its lithium battery system. This technology not only provides long-lasting power but also reduces downtime as it charges quickly. Compared to traditional lead-acid batteries, lithium options require less maintenance, and their eco-friendly design means they have a lower environmental impact. Thus, businesses that choose this model can navigate their material handling tasks efficiently while promoting sustainability.
