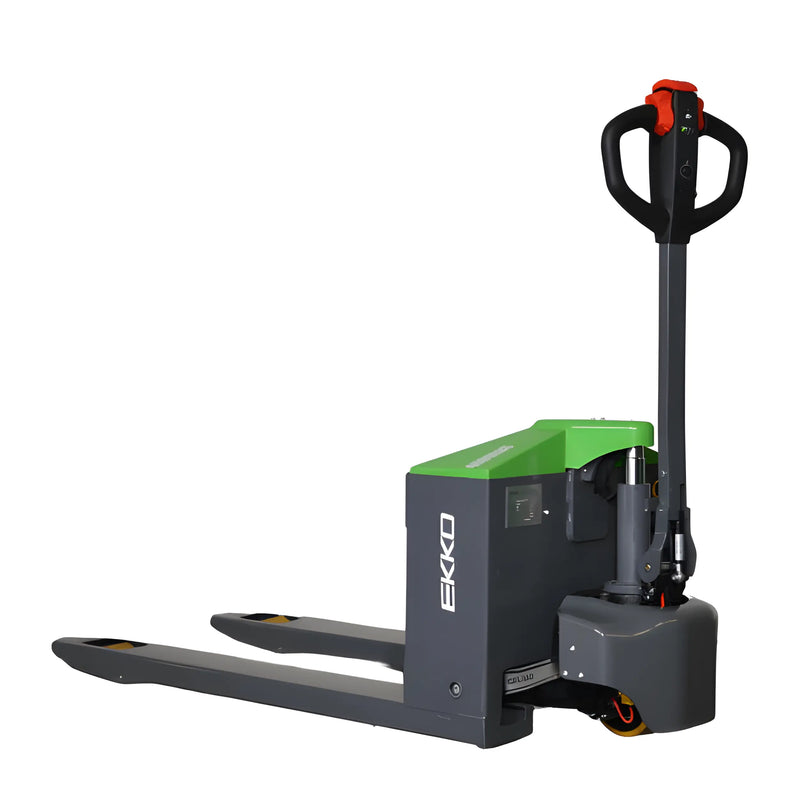

EKKO EP18JLIC 4000 lb Lithium Walkie Pallet Jack

Name: EKKO EP18JLIC 4000 lb Lithium Walkie Pallet Jack
Brand: EKKO
SKU: EP18JLIC
Price: 3066.6 USD
Availability: InStock

See more by EKKO

$161.40 Off Limited time deal

$3,228.00

$3,228.00 - $3,228.00

$3,228.00

$3,066.60

$3,066.60 - $3,066.60

$3,066.60

In stock

SKU EP18JLIC

Quantity

Product Overview

In short

The EKKO EP18JLIC is an electric walkie pallet jack with a 4,000 lb load capacity, powered by a 24V/40Ah LiFePO₄ lithium battery. It features a 7.48 in lifting height, polyurethane wheels, and a 346 lb service weight (with battery), making it suited for warehouse and loading dock pallet transport.

The EKKO EP18JLIC 4000 lb Lithium Walkie Pallet Jack is an electric pallet jack designed to be used in warehouses, stock rooms, dock areas, and manufacturing floor environments. It has a powerful lithium 24 V LiFePO₄ battery that will give you years of reliable service at a low cost of ownership, fast charge time, and little required maintenance. In addition to being a walkie pallet jack (combining electric drive and lift function) this product reduces the physical labor associated with loading and unloading tasks, therefore increasing your productivity. With the use of robotic welds on a steel frame this pallet jack will last you a very long time, as well as have polyurethane wheels and an ergonomically designed control handle to ensure you can move around easily and safely. The pallet jack also comes with a charger, battery, and a 3 year limited warranty to allow you to have peace of mind.

Key features of the EKKO EP18JLIC 4000 lb Lithium Walkie Pallet Jack include:

The use of a lithium 24V LiFePO₄ battery gives you longer run times and quicker charge times.
This product can hold a maximum weight of 4000 lbs for moving large pallets.
It is an electric drive pallet jack with lift capabilities which allows for efficient walkie movement.
With polyurethane wheels and an ergonomically designed control handle the EKKO pallet jack makes for easy and comfortable operation.
The pallet jack's robotic welded steel frame provides a strong and reliable structure.

Specification Table

EP18JLIC · Full Electric Pallet TruckSKU EP18JLIC
Drive type	Electric
Manner of operation	Walkie
Load Capacity	4000 Q (LBS)
Load Centre	23.6 c (Inch)
Axle centre to fork face	37 x (Inch)
Wheel Base	50.3 y (Inch)
Tire material	Polyurethane
Driving wheel size	Φ8.27×2.95 Φ×w(Inch)
Bearing wheel size	Φ2.91×3.66 Φ×w(Inch)
Qty of wheel，Front/Rear（x=driving wheel）	1x/2
Tread	21.06 b11 (Inch)
Lifting Height	7.48 h3 (Inch)
The height of handle in the operation position	48.2 h14 (Inch)
Lowered fork height	2.95 h13 (Inch)
Overall Length	64 l1 (Inch)
Body Length	16.53 l2 (Inch)
Overall Width	27 b1/ b2 (Inch)
Fork Size	2.24/6.3/45.28 s/e/l (Inch)
Fork Width	27 b5 (Inch)
Min.Ground clearance	1.06 m2 (Inch)
Aisle width for pallets 39.37*47.24 crossways	88.9 Ast (Inch)
Aisle width for pallets 31.5*47.24 lengthways	83.9 Ast (Inch)
Turing Radius	57.5 Wa (Inch)
Driving Speed，load/unload	2.6/2.8 (km/h)
Maximum gradeability load/unload	0.24/0.39 (in/s)
Brake Type	Electromagnetic brake
Drive Motor	0.75 (kW)
Lift Motor	0.8 (kW)
Lithium LiFePO4 Battery voltage rate capacity	24/40 (V/Ah)
Battery Weight（±5%）	21.1 LBS
Type of drive control	DC
Noise level	≤70 (dB(A))
Service Weight（with battery）	346 LBS
Wheels (Front/Rear)	1×/2
Handle Height (Operating)	48.2 in
Fork Size (s/e/l)	2.24/6.3/45.28 in
Aisle Width (Crossways)	88.9 in
Aisle Width (Lengthways)	83.9 in
Turning Radius	57.5 in
Max Gradeability (Load/Unload)	0.24/0.39 in/s
Battery (LiFePO₄)	24 V / 40 Ah
Battery Weight	21.1 lbs
Drive Control	DC

FAQ about this model

What applications and loads is the EKKO EP18JLIC suited for?

With a 4,000 lb load capacity and 23.6 in load centre, the EP18JLIC is designed for moving palletized loads in warehouses, stock rooms, loading docks, and manufacturing floors. Its 27 in fork width and 45.28 in fork length (s/e/l: 2.24/6.3/45.28 in) accommodate standard pallet handling tasks.

What do the key specifications mean for this model?

The 4,000 lb load capacity indicates the maximum weight it can transport, while the 7.48 in lifting height determines how far the forks raise a pallet off the ground. The lowered fork height of 2.95 in allows the forks to slide under standard pallets, and the 1.06 in minimum ground clearance supports maneuvering over slightly uneven warehouse floors.

How is the EP18JLIC powered and operated?

This is an electric walkie-type pallet jack, meaning the operator walks alongside the unit while controlling it rather than riding on it. It runs on a 24V/40Ah LiFePO₄ lithium battery, with a 0.75 kW drive motor and a 0.8 kW lift motor, using DC drive control and an electromagnetic brake system.

How does the EP18JLIC compare within the electric walkie pallet jack category?

The EP18JLIC offers a 4,000 lb capacity paired with a compact footprint, including a 57.5 in turning radius and 27 in overall width, which supports operation in tighter aisles (88.9 in crossways / 83.9 in lengthways for standard pallet sizes). Its polyurethane wheels and electromagnetic braking are consistent with standard features found in this equipment category.

Compare models

	3300 Electric Pallet Jack Lithium	4400 Lithium Walkie Pallet Jack	5500 Manual Pallet Jack	4000 EKKO EP18JLIC lb THIS	EKKO A25G 5500lbs Galvanized
Capacity	3300 Q (LBS)	4400 Q (LBS)	5,500 lbs	4000 Q (LBS)	5,500 lbs
Forks	2.24/6.3/45.28 s/e/l (Inch)	2.24/6.3/45.28 s/e/l (Inch)	48 in	2.24/6.3/45.28 s/e/l (Inch)	48 in
Lift Height	7.48 h3 (Inch)	7.48 h3 (Inch)	7.5 in	7.48 h3 (Inch)	7.5 in
Overall Length	64 l1 (Inch)	64 l1 (Inch)	63 in	64 l1 (Inch)	63 in
Price	$2,888.00 $2,743.60	$3,398.00 $3,228.10	$440.00 $418.00	$3,228.00 $3,066.60	$733.00 $695.40
	Check ›	Check ›	Check ›	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
