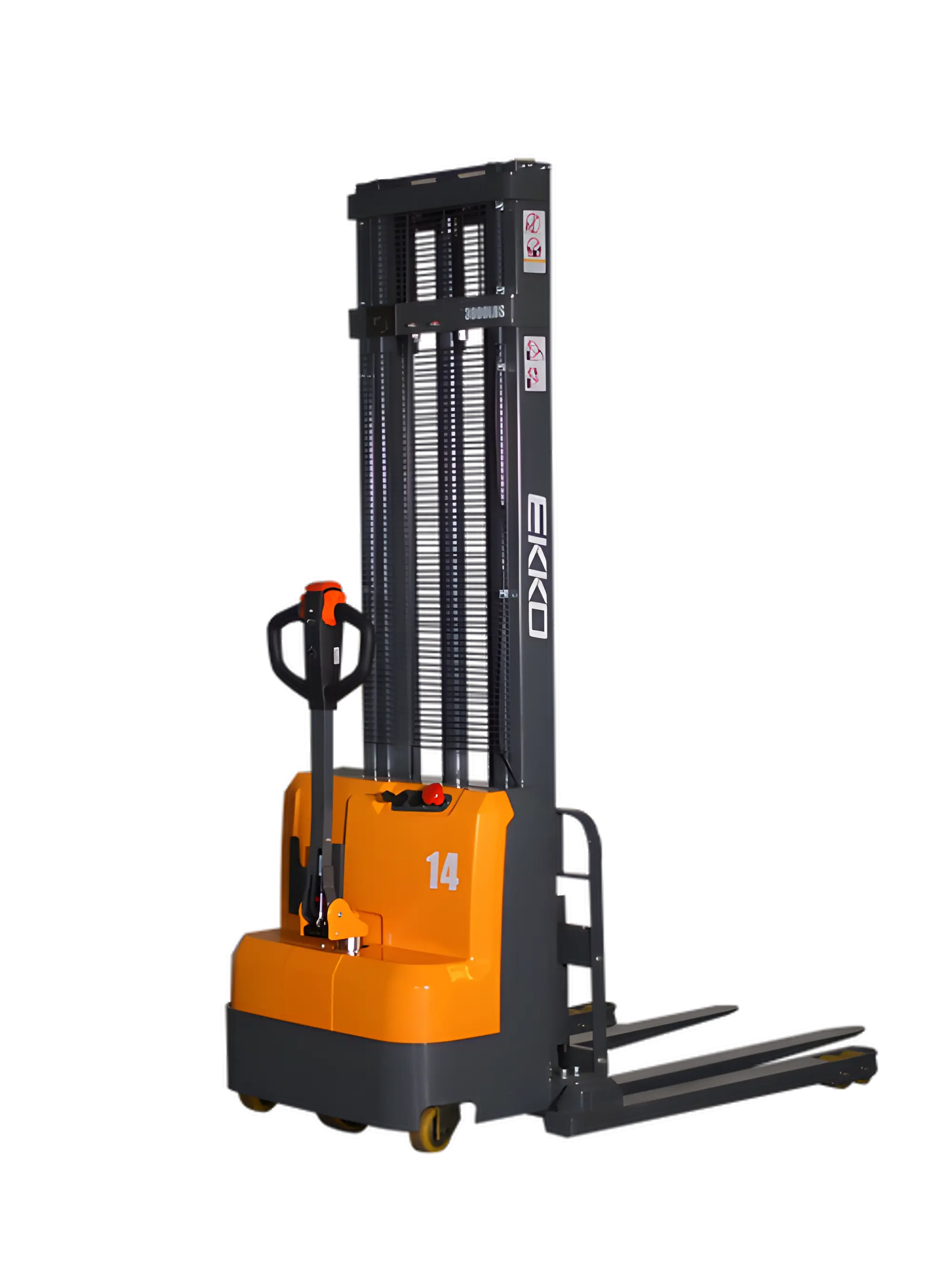

EKKO electric pallet stacker in orange and black with lifting forks and control handle

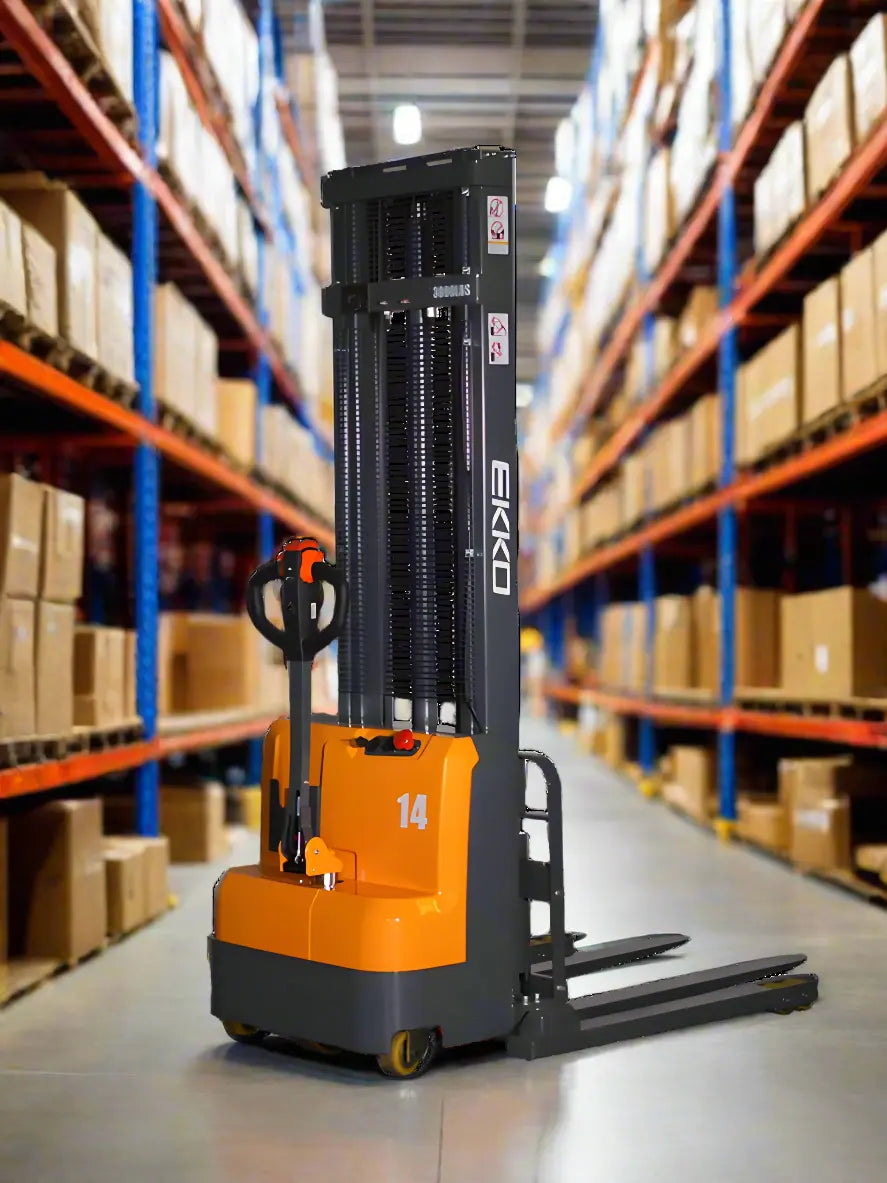

EKKO Electric Pallet Stacker in warehouse aisle with orange and black design for lifting and moving pallets

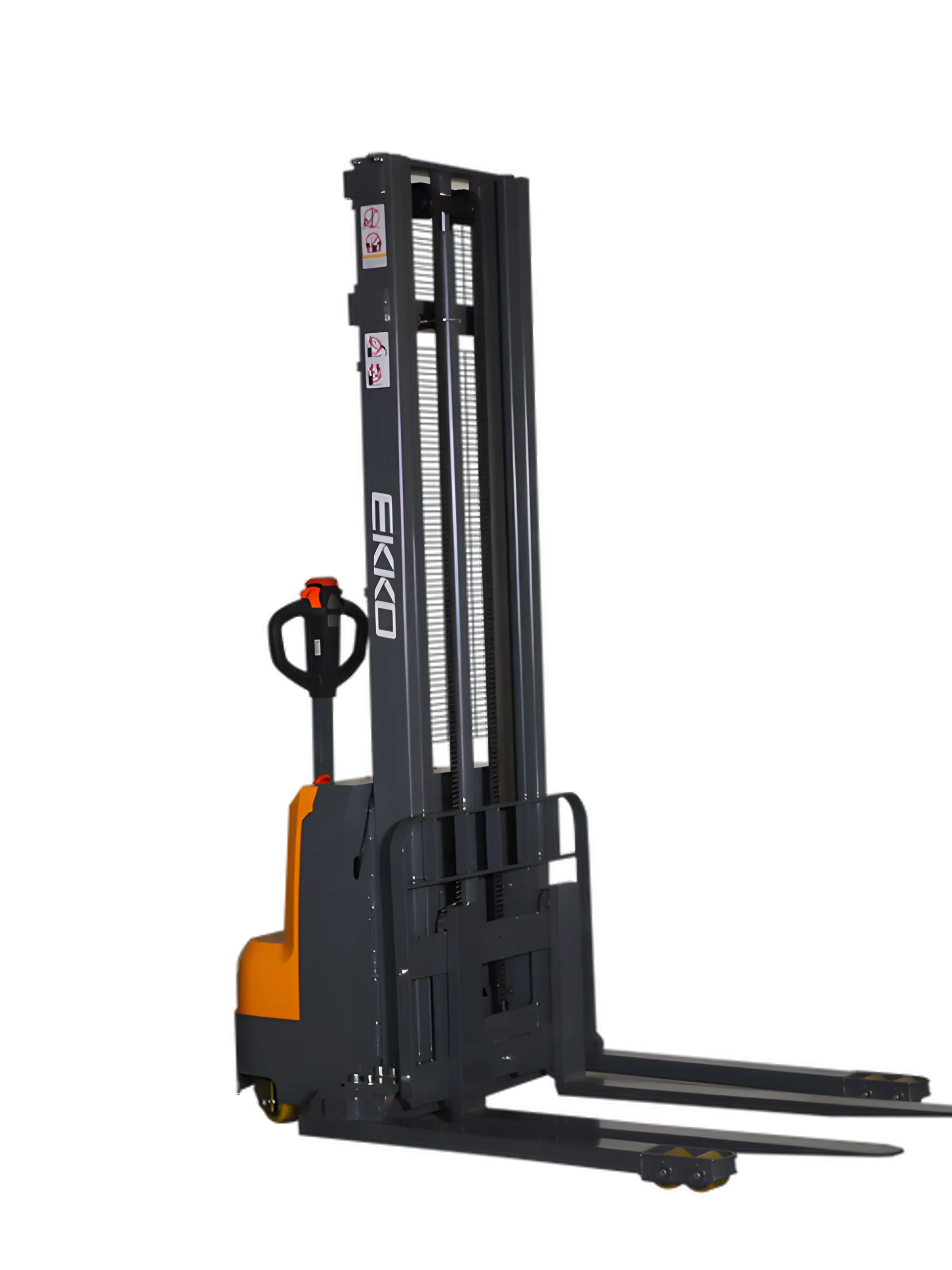

EKKO electric pallet stacker with durable steel frame and ergonomic handle for efficient material handling

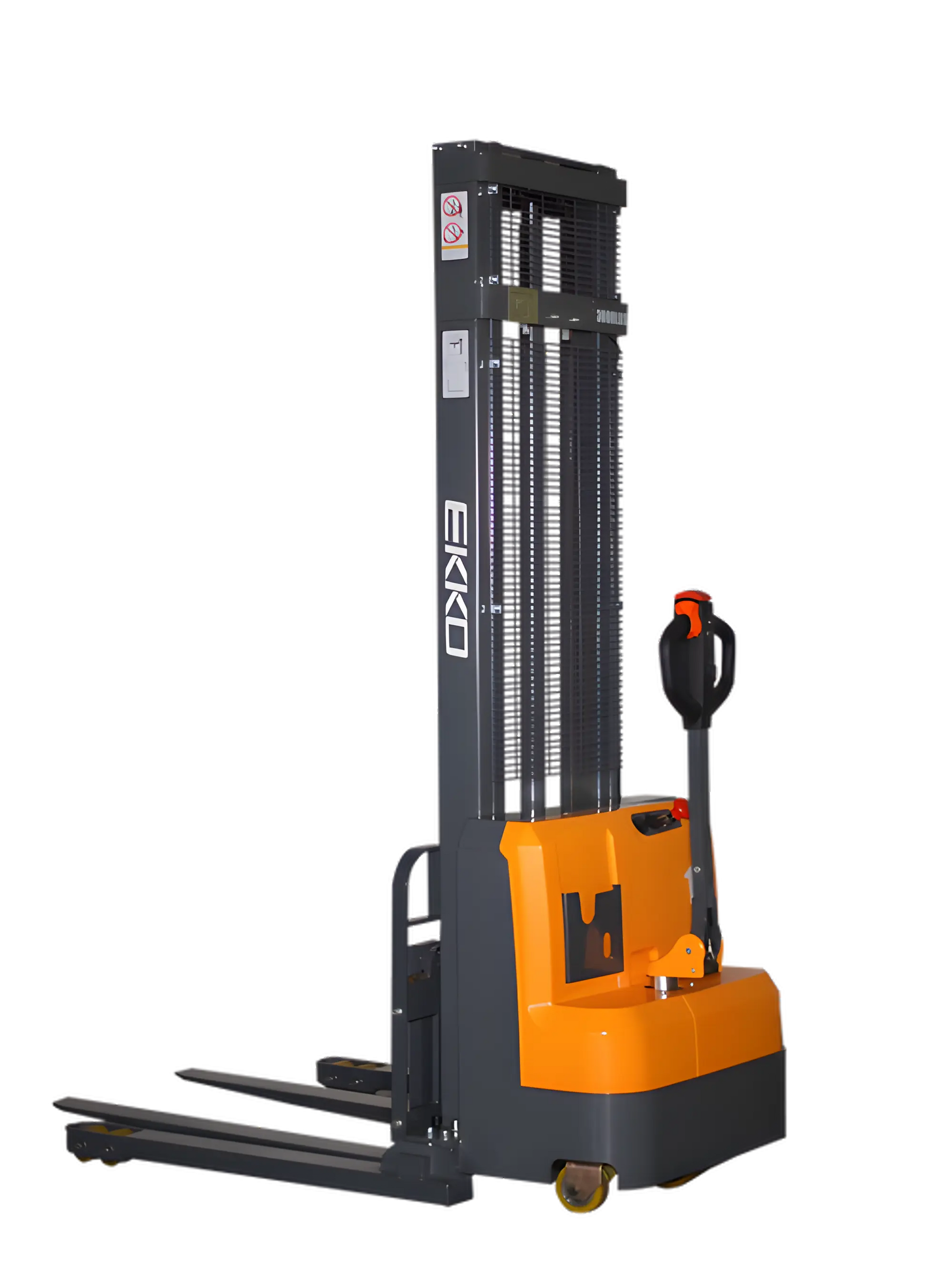

EKKO Electric Pallet Stacker in orange and black with dual lifting forks and ergonomic handle

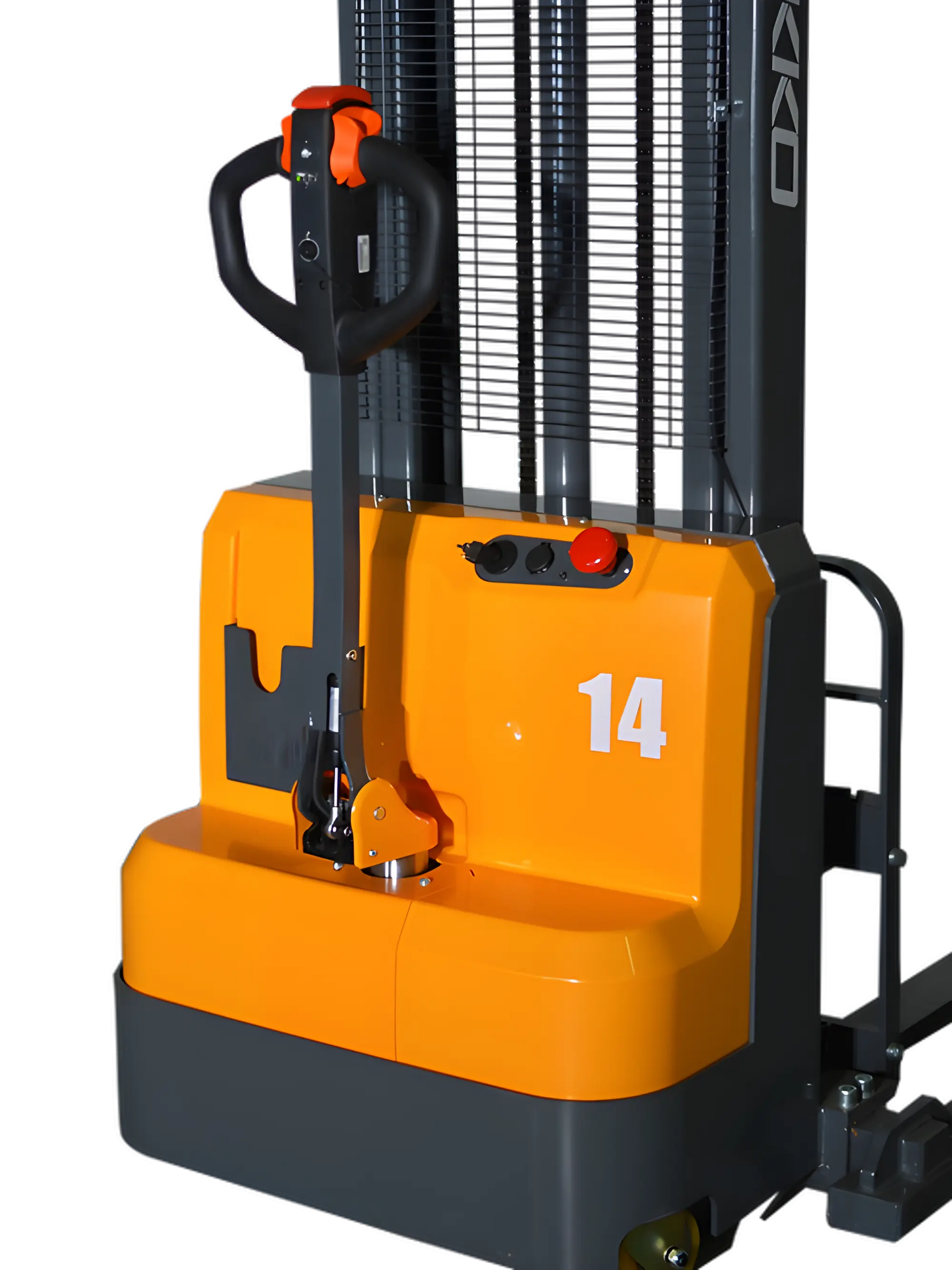

EKKO Electric Pallet Stacker in bright orange and gray with ergonomic handle and control buttons

EKKO EB14C-138 | Electric Pallet Stacker | 138" Lift, 3000 lbs

Name: EKKO EB14C-138 | Electric Pallet Stacker | 138" Lift, 3000 lbs
Brand: EKKO
SKU: EB14C-138
Price: 5593.6 USD
Availability: InStock

See more by EKKO

$294.40 Off Limited time deal

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

$5,593.60

$5,593.60 - $5,593.60

$5,593.60

In stock

SKU EB14C-138

Quantity

Product Overview

In short

The EKKO EB14C-138 is an electric straddle stacker that combines the functions of a forklift, reach truck, and walkie stacker, built for loading/unloading trucks and moving materials in stock rooms, loading docks, and warehouses. It offers a 3000 lbs load capacity and a maximum lift height of 138 inches, powered by a 24V/85Ah battery system.

The EKKO EB14C-138 Electric Pallet Stacker is a highly efficient and versatile full-power straddle stacker that provides the best solution for many warehouse operations, loading docks and stockrooms. It has a maximum lift height of 138 inches and a total weight capacity of 3,000 pounds and can be used for all types of pallet stacking and pallet handling from low racking to high racking applications. The EKKO EB14C-138 Electric Pallet Stacker is built with heavy duty materials and components and comes standard with adjustable fork length and leg length for flexibility in handling pallets of different sizes and configurations. The EKKO EB14C-138 Electric Pallet Stacker has an ergonomically-designed Curtis instrument controller and dual-damping drive system which will provide smooth, easy control over the direction of travel and reduce operator fatigue when operating the pallet stacker. The EKKO EB14C-138 Electric Pallet Stacker also includes a 24V/85Ah battery with an onboard charger and DC drive motor for increased efficiency and productivity in your daily material handling workflow.

Key Features:

3000 pound total weight capacity for heavy lifting and moving applications.
Maximum lift height of 138 inches for high stacking and efficient use of storage space.
Adjustable fork length (8.7 – 32.1 inch) and adjustable leg length (35.4 – 51.2 inch) for versatility in handling pallets of various sizes and configurations.
Dual-damping drive system for smooth and comfortable operation of the pallet stacker.
Ergonomically-designed Curtis controller with DC drive motor for precise control of the pallet stacker.

Specification Table

EB14C-138 · Full Electric Pallet StackerSKU EB14C-138
Load capacity	3000 (lbs)
The max. lifting height	138 (in)
Load center distance	20 (in)
Fork length	45.3 (in)
Single fork width	4 (in)
Fork Adjustment Width	8.7-32.1 (in)
Lowered fork height	2.6 (in)
Adjustable legs	35.4-51.2 (in)
Turning radius	57.5 (in)
Overall length	73.7 (in)
Max Overall width	61 (in)
Extended mast height	166.9 (in)
Lowered mast height	94.2 (in)
Battery voltage	24V/85Ah (V/Ah)
Internal Charger	24V/10 V/A
Lifting Motor	2.2 kw Kw
Driving Motor	DC Drive Motor
Service Weight	1470 (lbs)
Type	Electric Straddle Stacker / Pallet Stacker
Maximum Lift Height	138 in
Battery	24V/85Ah
Wheel Type	Polyurethane
Construction	Heavy-Duty Steel

FAQ about this model

What applications and loads is the EKKO EB14C-138 suited for?

The EB14C-138 is designed for loading and unloading trucks, moving materials in stock rooms, loading docks, and warehouses. It handles loads up to 3000 lbs and is built with heavy-duty steel construction to support regular material handling tasks in these environments.

What do the key specifications of this stacker mean?

The EB14C-138 has a load capacity of 3000 lbs and a maximum lift height of 138 in, with an extended mast height of 166.9 in and a lowered mast height of 94.2 in. Fork length is 45.3 in with a single fork width of 4 in, and fork adjustment width ranges from 8.7–32.1 in to accommodate different pallet types. The adjustable legs range from 35.4–51.2 in, and the turning radius is 57.5 in, which affects maneuverability in tighter spaces.

How is the EKKO EB14C-138 powered and operated?

This stacker runs on a 24V/85Ah battery with an internal 24V/10A charger. It uses a DC drive motor for driving and a 2.2 kW motor for lifting functions, with polyurethane wheels for the drive and load wheels.

How does the EB14C-138 compare within the electric stacker category?

As an electric straddle stacker, the EB14C-138 combines capabilities found separately in forklifts, reach trucks, and walkie stackers, making it a multi-function option within the stacker category. Its 138 in maximum lift height and 3000 lbs capacity, combined with an overall length of 73.7 in and max overall width of 61 in, position it for facilities needing vertical reach and load handling in a single unit.

Compare models

	2800 Electric Pallet Stacker 118"	2800 Electric Pallet Stacker 138"	2800 Electric Pallet Stacker 98"	3000 Electric Pallet Stacker 138" THIS	3000 Electric Pallet Stacker 98"
Capacity	2800 (lbs)	2800 (lbs)	2800 (lbs)	3000 (lbs)	3000 (lbs)
Lift Height	118” (in)	138” (in)	98” (in)	138 (in)	98 (in)
Load center distance	24 (in)	24 (in)	24 (in)	20 (in)	24 (in)
Lowered fork height	2.56 (in)	2.56 (in)	2.56 (in)	2.6 (in)	2.6 (in)
Price	$5,733.00 $5,004.60	$5,888.00 $5,593.60	$5,883.00 $5,593.60	$5,888.00 $5,593.60	$5,888.00 $5,593.60
	Check ›	Check ›	Check ›	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
