Product Overview
Specification Table
FAQ about this model
What applications and loads is the EKKO EPF18Li suited for?

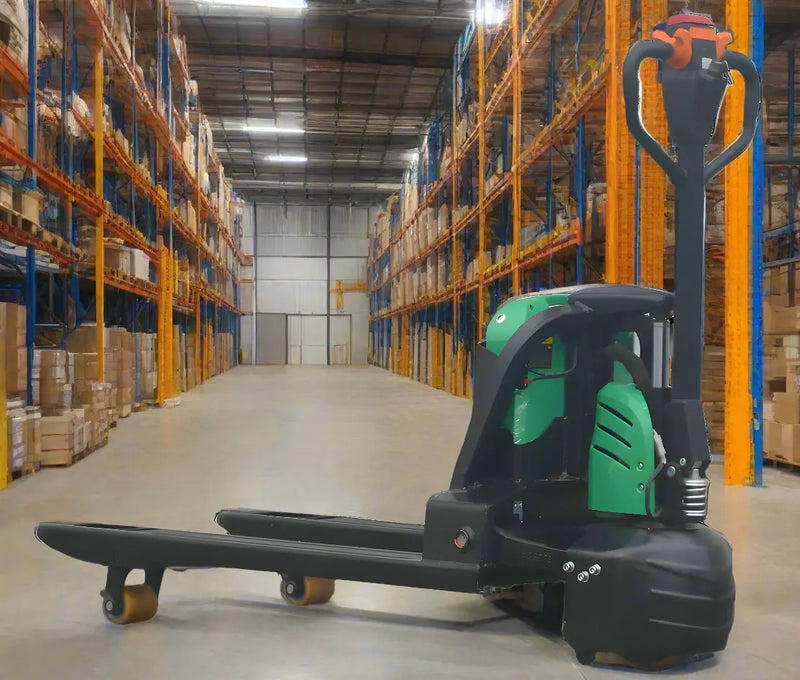

The EPF18Li is designed for warehouse, distribution, and loading dock environments where pallets need to be moved efficiently. It has a load capacity of 4,000 lb (approx. 1800 kg rated capacity), making it suitable for handling standard palletized loads in these settings.
What are the key specifications of the EPF18Li?
The unit has a load capacity of 4,000 lb (Q) with a load center of 23.6 inches. It features a lifting height of 7.87 inches (h3) and a lowered fork height of 2.95 inches (h13). Fork dimensions are 1.97/5.91/45 inches (s/e/l), with an overall length of 65.86 inches and an overall width of 26.97 inches.
What type of power and operation does the EPF18Li use?
The EPF18Li is an electric drive truck with an electric lift system, operated in a walk-behind (walkie), tiller-controlled style. It is powered by a Lithium-Ion LiFePO4 battery rated at 24V/40Ah. The drive motor is rated at 0.75 kW and the lift motor at 0.8 kW, with an electromagnetic brake system. Driving speed is 4.2 km/h loaded and 4.5 km/h unloaded.
How does the EPF18Li compare within the electric walkie pallet truck category?
As an electric walkie pallet truck, the EPF18Li combines a 4,000 lb load capacity with a Lithium-Ion battery system, offering fast charging, low maintenance, and improved productivity compared to traditional manual or lead-acid battery pallet trucks. Its PU tires and electric lift/drive systems are typical features within this equipment category, geared toward efficient material handling in warehouse and dock settings.
Compare models
| 3300 Lithium-Ion Electric Walkie Pallet | 4000 Lithium-Ion Electric Walkie Pallet THIS | 4400 Lithium-Ion Electric Walkie Pallet | |
|---|---|---|---|
| Battery Weight(±5%) | 24V/30Ah Lithium | 22.4 LBS | 22.4 LBS |
| Bearing wheel size | Φ×w(Inch) | Φ3.15×3.35 Φ×w(Inch) | Φ3.15×3.35 Φ×w(Inch) |
| Body Length | l2 (Inch) | 17.83 l2 (Inch) | 17.83 l2 (Inch) |
| Capacity | 3300 lbs | 4000 Q (LBS) | 4400 Q (LBS) |
| Price | $2,548.00 $2,420.60 | $2,718.00 $2,582.10 | $3,228.00 $3,066.60 |
| Check › | Viewing | Check › |
Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
Shipping & Returns
We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.
60-DAY NO-HASSLE REFUNDS AND RETURNS
If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com
More information on shipping and returns can be found here.
Warranty
EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.
