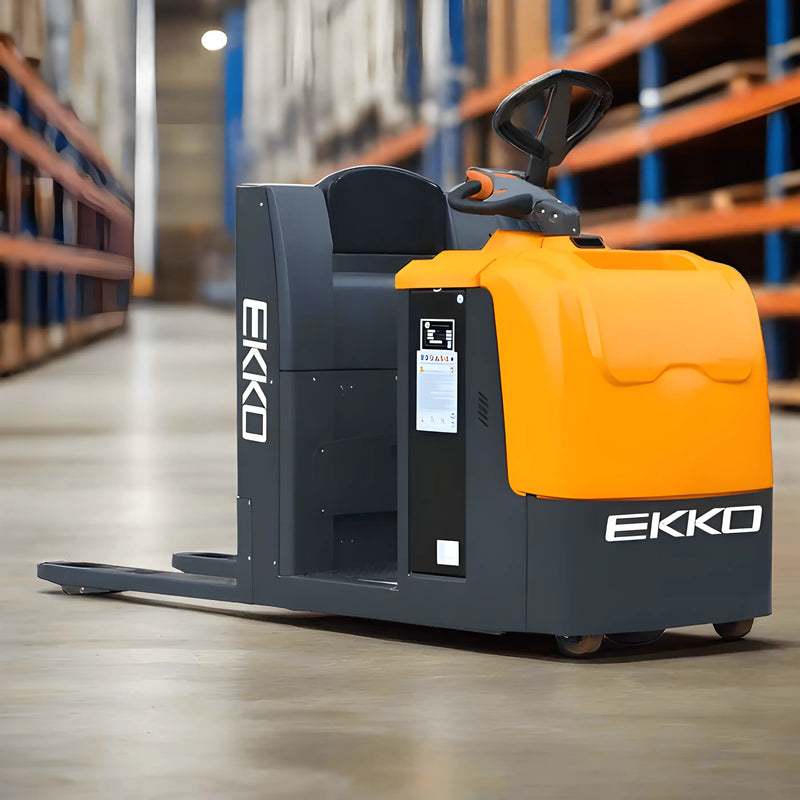

EKKO EPC30A Center-Controlled Rider Pallet Jack 5000lbs. Capacity

Name: EKKO EPC30A Center-Controlled Rider Pallet Jack 5000lbs. Capacity
Brand: EKKO
SKU: EPC30A
Price: 14533.1 USD
Availability: InStock

See more by EKKO

$764.90 Off Limited time deal

$15,298.00

$15,298.00 - $15,298.00

$15,298.00

$14,533.10

$14,533.10 - $14,533.10

$14,533.10

In stock

SKU EPC30A

Quantity

Product Overview

In short

The EKKO EPC30A is an electric, center-controlled rider pallet jack with a 5,000 lbs load capacity, built for stand-on operation across warehouse and dock environments. It features a 24V/360Ah battery, ZF German AC drive motor, and a lifting height of 7.88 inches, making it suited for extended material transport tasks.

The EKKO EPC30A Center-Controlled Rider Pallet Jack is an electric, stand-on pallet truck engineered for efficient material handling with a rated capacity of 5,000 lbs. It combines AC drive control, EPS steering, and an electromagnetic brake system for controlled, stable operation. Built with polyurethane wheels and a stand-on platform, it is designed to move loads quickly across warehouse and distribution environments.

Key Benefits

Strong Load Capacity: Rated to handle up to 5,000 lbs, suitable for demanding pallet-moving tasks.
Electric Drive and Lift: Powered by a 1.5 kW drive motor and 0.8 kW lift motor for efficient operation.
Stand-On Design: Center-controlled, stand-on operation supports efficient handling over long aisles and distances, with a wheelbase of 81.89 inches.
AC Drive with EPS Steering: Type of drive control is AC, paired with EPS steering for smooth directional control.
Reliable Braking: Equipped with an electromagnetic brake for controlled stopping.
Battery-Powered Runtime: Runs on a 24V/360Ah battery system (680 lbs battery weight) to support extended operation.
Low Noise Operation: Operates at a noise level of ≤75 dB(A), suitable for indoor facility use.

The EKKO EPC30A is well suited for warehouses, distribution centers, and loading docks where efficient, repeated pallet transport is required. Its stand-on, center-controlled design and 5,000 lb capacity make it a practical choice for operators moving palletized goods across facility floors and between storage areas. With PU wheels and AC drive control, it is intended for indoor and smooth-surface material handling operations.

Specification Table

EPC30A · Full Electric Pallet TruckSKU EPC30A
Power unit	Electric
Operation	Stand on
Rated loading capacity Q (LBS)	5000
Load centre c (Inch)	35.83
Distance between fork backrest and front wheel x (Inch)	35.83
Wheel base y (Inch)	81.89
Wheels type	PU
Driving wheel size Φ×w(Inch)	Φ9.84×2.95
Bearing wheel size Φ×w(Inch)	Φ3.15×3.35
Balance wheels Φ×w(Inch)	Φ4.53×2.17
Wheels, number front/rear (x = driven)	1,2/2
Track width b10 (Inch)	21.26
Track width b11 (Inch)	20.28
Lifting height h3 (Inch)	7.88"
Overall height h14 (Inch)	42.91
Lowered fork height h13 (Inch)	3.35
Overall length l1 (Inch)	99.09
Body Length l2 (Inch)	58.82
Overall width b1/ b2 (Inch)	31.81
Fork Size s/e/l (Inch)	1.97/6.69/45.3
Fork Width b5 (Inch)	26.97
Min.Ground clearance m2 (Inch)	0.98
Aisle width for pallets 39.37*47.24 crossways Ast (Inch)	107.48
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch)	109.45
Turing Radius Wa (Inch)	89.68
Travel speed,laden/unladen (km/h)	5.2/5.5
Lifting speed, with/without load (mm/s)	23/24
Lowering speed, with/without load (mm/s)	30/20
Maximum climbing ability, with/without load (%)	3/6
Brake Type	Electromagnetic brake
Drive Motor (kW)	1.5
Lift Motor (kW)	0.8
Battery，according to DIN 43531/35/36 A,B,C,no	no
Battery voltage/rate capacity	24/360
Battery Weight（±5%）	680
Steering type	EPS
Type of drive control	AC
Noise level (dB(A))	≤75
Service weight with battery LBS	2400

FAQ about this model

What applications and loads is the EKKO EPC30A suited for?

The EPC30A is designed for demanding warehouse tasks such as long-distance transport, loading dock operations, and manufacturing floor material handling. It has a rated loading capacity of 5,000 lbs, making it suitable for moving heavy palletized loads efficiently across facilities.

What are the key specifications of the EPC30A?

The EPC30A has a load capacity of 5,000 lbs and a lifting height (h3) of 7.88 inches. Fork dimensions are 1.97/6.69/45.3 inches (s/e/l), with a fork width of 26.97 inches. The unit has an overall length of 99.09 inches, an overall width of 31.81 inches, and an overall height of 42.91 inches, giving it a substantial footprint suited for handling standard pallet sizes.

What type of power and operation does the EPC30A use?

The EPC30A is an electric pallet jack with stand-on operation, allowing the operator to ride the unit during use. It runs on an included 24V/360Ah battery and is powered by a ZF German AC drive motor paired with a Curtis controller. The unit rolls on polyurethane (PU) wheels and is built with a steel frame using robotic welding for durability.

How does the EPC30A compare within the pallet jack category?

Unlike basic manual or walk-behind electric pallet jacks, the EPC30A is a center-controlled rider model, meaning the operator stands on the unit for extended travel rather than walking alongside it. This design, combined with its 5,000 lbs capacity, AC drive system, and robotically welded steel construction, positions it for higher-throughput, longer-distance material handling compared to lighter-duty pallet jacks in the category.

Compare models

	EPC30A EKKO Center-Controlled Rider THIS	4400 EKKO EP20LI Lithium Iron
Engine / Motor	Electric	750W (W)
Forks	1.97/6.69/45.3	2/6/48 s/e/l (in)
Lift Height	7.88"	7.7 (in)
Speed	5.2/5.5	0.8/1.1 (in/s)
Price	$15,298.00 $14,533.10	$5,098.00 $4,843.10
	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
