EKKO EP25E electric pallet jack with yellow and black body for efficient warehouse material handling

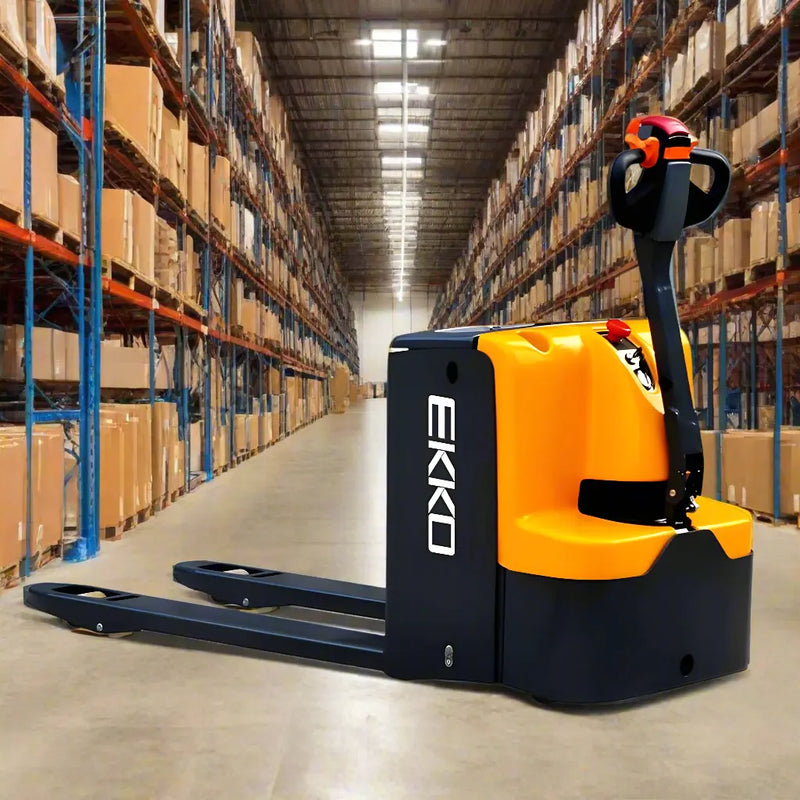

EKKO EP25E electric pallet jack in warehouse aisle with shelves stocked with boxes

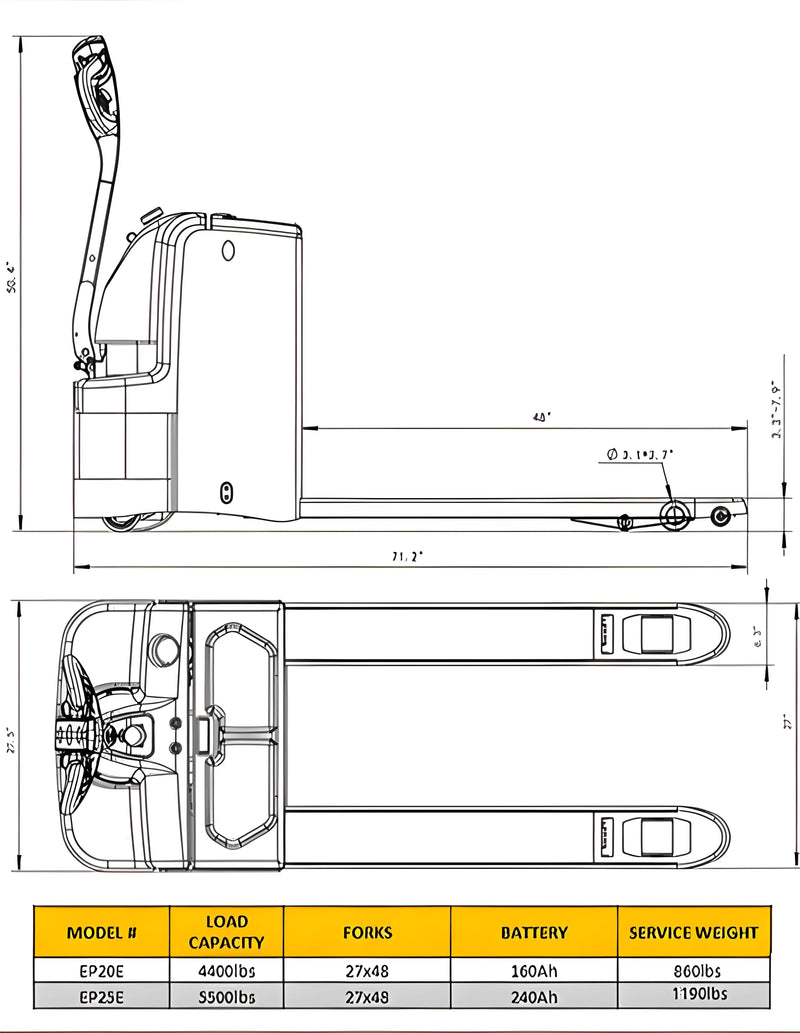

Technical drawing of EKKO EP25E electric pallet jack with dimensions and load capacity details

EKKO EP25E electric pallet jack with 4400-5500 lbs capacity and polyurethane wheels

EKKO EP25E electric pallet jack with compact design and durable build for material handling

EKKO EP25E | Electric Walkie Pallet Truck | with 5500 lb Load Capacity

Name: EKKO EP25E | Electric Walkie Pallet Truck | with 5500 lb Load Capacity
Brand: EKKO
SKU: EP25E
Price: 7750.1 USD
Availability: InStock

See more by EKKO

$407.90 Off Limited time deal

$8,158.00

$8,158.00 - $8,158.00

$8,158.00

$7,750.10

$7,750.10 - $7,750.10

$7,750.10

In stock

SKU EP25E

Quantity

Product Overview

In short

The EKKO EP25E is an electric walkie pallet truck with a 5500 lb (2500 kg) load capacity, offering electric drive and electric lift in a walk-behind, tiller-controlled design. It's built for heavy pallet transport and daily material handling in warehouses, distribution centers, and loading docks.

The EKKO EP25E Electric Walkie Pallet Truck is a heavy-duty, highly efficient pallet truck that has been designed to provide operators with the tools necessary to efficiently move pallets throughout their warehouse, distribution center or loading dock operation. As a heavy-duty pallet truck that has the ability to handle loads of up to 5500 pounds, this product provides a safe way for operators to move heavier pallet loads without feeling fatigued by the physical demands of these tasks. This heavy-duty pallet truck features a fully electric powered drive system and lift system which allows for smooth acceleration and deceleration as well as a stable platform for lifting pallets and controlled lowering of the forks to improve production levels and reduce operator fatigue. Additionally, the compact walkie design of the EP25E will allow for excellent maneuverability in narrow aisles and in high traffic areas which can help streamline the workflow and reduce cycle times. Designed to be built for long-term use and consistency, the EKKO EP25E is a great choice for facilities that require reliable, high-capacity pallet movement with ease of operation.

Key Features

5500 Lbs Load Capacity for Heavy Duty Pallet Applications
Fully Electric Drive and Lift System for Smooth and Efficient Operation
Compact Walkie Design for Easy Navigation of Narrow Aisles and Tight Spaces
Stable Load Handling for Safer Transport and Increased Productivity
Ergonomic Tiller Controls for Operator Comfort and Precise Control

Specification Table

EP25E · Full Electric Pallet TruckSKU EP25E
Lift	Electric
Drive	Electric
Load capacity	5500 (lbs)
Load center	24 (in)
Wheel base	53 (in)
Lowered fork height	3.33 (in)
Lifting height	7.9 (in)
Overall length	71.2 (in)
Overall width	27.5 (in)
Fork size	2/6/48 s/e/l (in)
Outside distance of fork	27 (in)
Turning radius	60 (in)
Lifting speed, laden/unladen	0.8/1.1 (in/s)
Lowering speed, laden/unladen	1.5/1.5 (in/s)
Max gradient performance laden/unladen	8/15 (%)
Brake type	electromagnetic
Drive motor	1.3 (kW)
Lift motor	0.8 (kW)
Charger	24/30A (V/A)
Battery voltage/rated capacity	24/240 (V/Ah)
Type of the drive motor	AC Motor speed control
Noise level at operator sear	68 (dB(A))
Service weight (with battery）	1100 (lbs)
Brand / Model	EKKO EP25E
Power Source	Electric
Operation Style	Walk-Behind / Tiller Control
Drive System	Electric Drive
Lift System	Electric Lift
Primary Applications	Warehouse, Distribution Centers, Loading Docks
Best Use Case	Heavy pallet transport and daily material handling
Key Benefits	Reduced fatigue, improved productivity, durable performance

FAQ about this model

What applications and loads is the EKKO EP25E suited for?

The EP25E is designed for warehouse operations, distribution centers, and loading docks. Its primary use case is heavy pallet transport and daily material handling, making it well-suited for tasks like unloading trucks and moving palletized loads across a facility with a load capacity of 5500 lb (2500 kg).

What do the key specifications of the EP25E mean?

The EP25E has a load capacity of 5500 lb (2500 kg) and a lifting height of 7.9 in, with a lowered fork height of 3.33 in. Fork size is 2/6/48 in (s/e/l), and the load center is rated at 24 in. The unit has an overall length of 71.2 in, overall width of 27.5 in, and a turning radius of 60 in, giving it a footprint suited for maneuvering in typical warehouse aisles.

How does the EP25E operate, and what powers it?

The EP25E is fully electric, featuring both an electric drive system (1.3 kW AC motor) and an electric lift system (0.8 kW motor), eliminating manual pumping or manual pulling. It uses a walk-behind, tiller-control operation style, and runs on a 24V/240Ah battery with a 24V/30A charger. Braking is handled by an electromagnetic brake system, and the unit operates at a noise level of 68 dB(A) at the operator's ear.

How does the EP25E compare within the electric pallet truck category?

As a fully electric walkie pallet truck—featuring both electric drive and electric lift—the EP25E goes beyond manual or semi-electric pallet jacks that require physical effort to move or raise loads. This combination is intended to reduce operator fatigue, improve productivity, and deliver durable performance for daily heavy pallet transport tasks, all within a 1100 lb service weight (with battery).

Compare models

	5500 Electric Walkie Pallet Truck THIS	4400 Electric Walkie Pallet Truck
Capacity	5500 (lbs)	4400 (lbs)
Lowered fork height	3.33 (in)	3.3 (in)
Overall width	27.5 (in)	28 (in)
Best Use Case	Heavy pallet transport and daily material handling	Daily pallet transport and material movement
Price	$8,158.00 $7,750.10	$7,138.00 $6,781.10
	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
