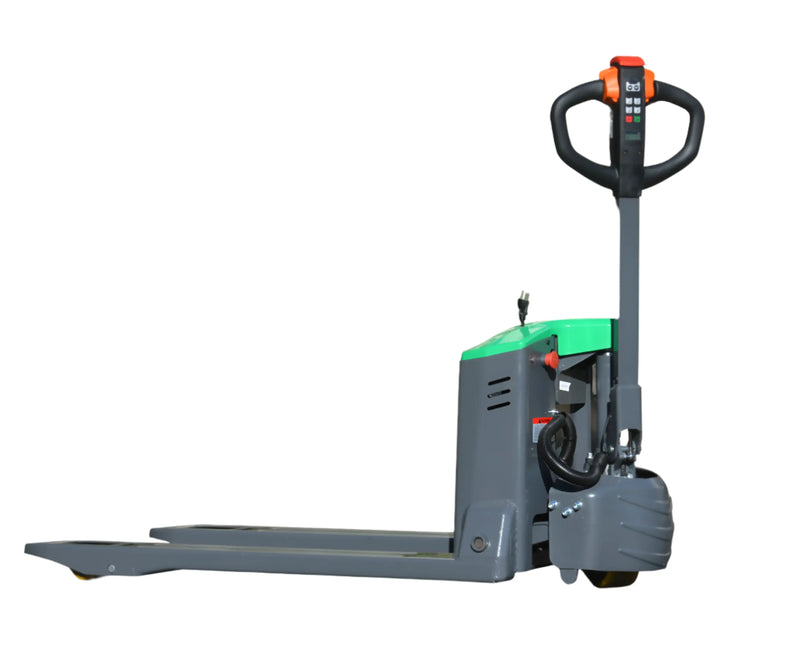

EKKO EP20JLi electric pallet jack with ergonomic handle and green accents for warehouse use

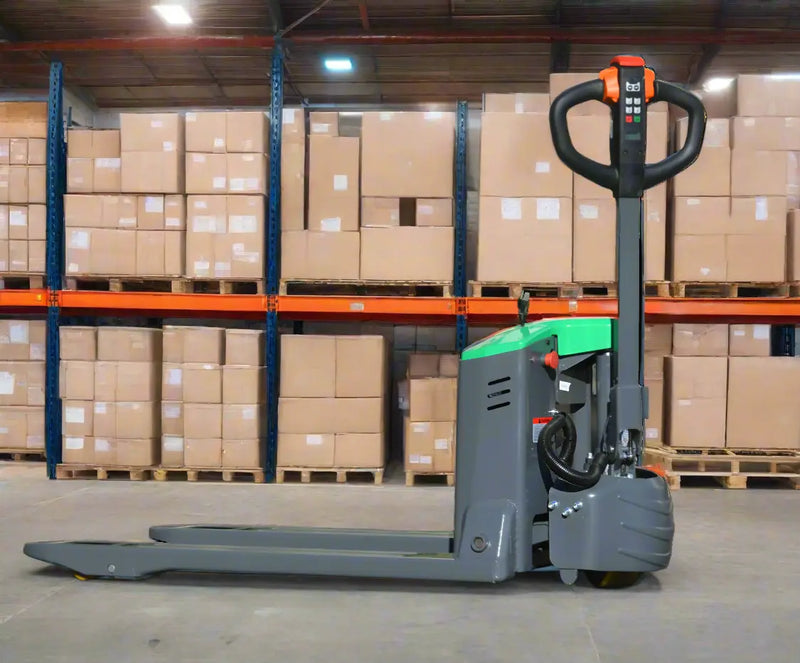

EKKO EP20JLi electric pallet jack with ergonomic handle in warehouse with stacked cardboard boxes

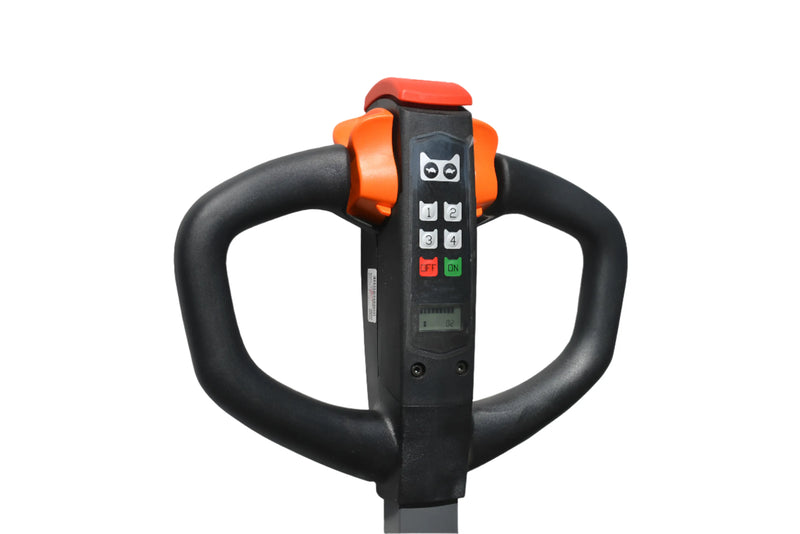

EKKO EP20JLi electric pallet jack handle with control buttons and ergonomic grip

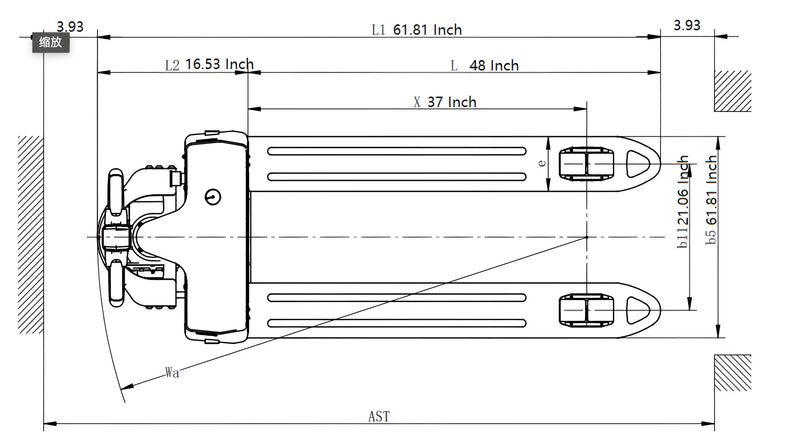

Technical drawing with dimensions of EKKO EP20JLi pallet jack showing top view and measurements

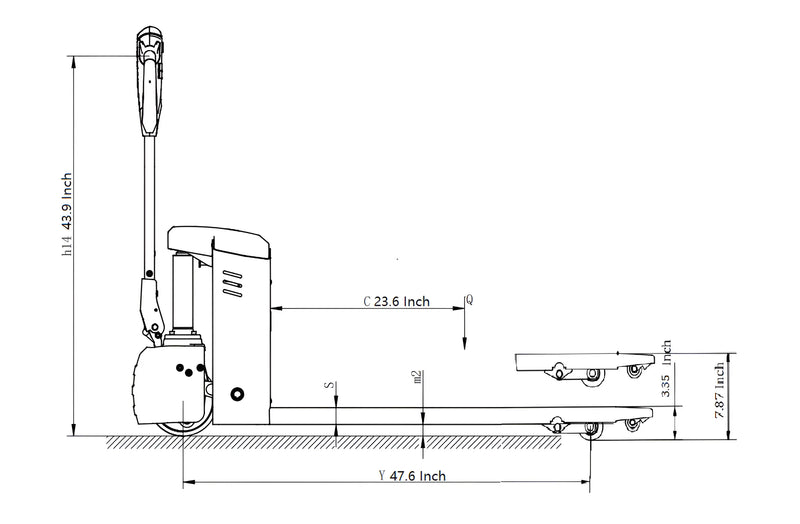

Technical drawing of EKKO EP20JLi pallet jack with detailed dimensions and handle design

EKKO EP20JLi | Full Powered Lithium | Electric Walkie Pallet Truck | with 4400 lb Load Capacity

Name: EKKO EP20JLi | Full Powered Lithium | Electric Walkie Pallet Truck | with 4400 lb Load Capacity
Brand: EKKO
SKU: EP20JLI
Price: 3066.6 USD
Availability: InStock

See more by EKKO

$161.40 Off Limited time deal

$3,228.00

$3,228.00 - $3,228.00

$3,228.00

$3,066.60

$3,066.60 - $3,066.60

$3,066.60

In stock

SKU EP20JLI

Quantity

Product Overview

In short

The EKKO EP20JLi is a full powered lithium electric walkie pallet truck with a 4400 lb (2000 kg) load capacity, designed for walk-behind/tiller operation in warehouse, distribution, dock, and logistics settings. It features a fully electric drive and lift system powered by a 48V/20Ah LiFePO4 lithium battery.

The EKKO EP20JLi is a full powered lithium electric walkie pallet truck built for efficient pallet handling in warehouse, distribution, dock, and logistics operations. With a 4400 lb load capacity and fully electric drive and lift systems, it delivers smooth, controlled movement while reducing operator strain. Its compact walk-behind design and lithium power source combine to support consistent, productive daily use.

Key Benefits

Strong Load Capacity: Handles up to 4400 lb, making it suitable for heavy-duty pallet transport.
Fully Electric Drive & Lift: A 1 kW drive motor and 0.8 kW lift motor provide powered travel and lifting for smoother, more responsive operation.
Lithium LiFePO4 Battery: The 48V/20Ah lithium battery supports reliable power delivery while helping to reduce downtime.
Electromagnetic Brake: Provides consistent stopping control during operation.
Compact Walkie Design: With a 27-inch overall width and 53.7-inch turning radius, it is well-suited for maneuvering in tighter warehouse aisles.
Low Noise Operation: Operates at a noise level of ≤70 dB(A), supporting a quieter work environment.

The EKKO EP20JLi is designed for warehouse, distribution, dock, and logistics operations where efficient, powered pallet movement is needed. Its walk-behind, fully electric design makes it a practical choice for operators who need reliable load transport combined with maneuverability in operational aisles. Businesses focused on high uptime, reduced operator fatigue, and improved material handling productivity may find this unit well suited to their daily operations.

Specification Table

EP20JLI · Full Electric Pallet TruckSKU EP20JLI
Drive type	Electric
Manner of operation	Walkie
Load Capacity	4400 Q (LBS)
Load Centre	23.6 c (Inch)
Axle centre to fork face	37 x (Inch)
Wheel Base	47.6 y (Inch)
Tire material	PU
Driving wheel size	Φ8.26×2.75 Φ×w(Inch)
Bearing wheel size	Φ3.15×2.36 Φ×w(Inch)
Qty of wheel，Front/Rear（x=driving wheel）	1x/2
Tread	21.06 b11 (Inch)
Lifting Height	7.8 h3 (Inch)
The height of handle in the operation position	30.5/43.9 h14 (Inch)
Lowered fork height	2.95 h13 (Inch)
Overall Length	61.81 l1 (Inch)
Body Length	16.53 l2 (Inch)
Overall Width	27 b1/ b2 (Inch)
Fork Size	1.97/5.9/45 s/e/l (Inch)
Fork Width	27 b5 (Inch)
Min.Ground clearance	1.38 m2 (Inch)
Aisle width for pallets 39.37*47.24 crossways	69.7 Ast (Inch)
Aisle width for pallets 31.5*47.24 lengthways	71.6 Ast (Inch)
Turing Radius	53.7 Wa (Inch)
Driving Speed，load/unload	4.2/4.5 (km/h)
Maximum gradeability load/unload	5/10 (%)
Brake Type	Electromagnetic brake
Drive Motor	1 (kW)
Lift Motor	0.8 (kW)
Lithium LiFePO4 Battery voltage rate capacity	48/20 (V/Ah)
Battery Weight（±5%）	26.4 LBS
Type of drive control	DC
Noise level	≤70 (dB(A))
Service Weight（with battery）	326 LBS
Brand / Model	EKKO EP20JLi
Power Type	Full Powered Lithium
Battery Type	Lithium Battery
Operation Style	Walk-Behind / Tiller Control
Drive System	Fully Electric Drive
Lift System	Fully Electric Lift
Primary Application	Warehouse, Distribution, Dock & Logistics Operations
Key Benefits	High uptime, reduced fatigue, improved productivity

FAQ about this model

What applications and loads is the EKKO EP20JLi suited for?

The EP20JLi is built for warehouse, distribution, dock, and logistics operations, handling loads up to 4400 lb (2000 kg). It's a walkie-style pallet truck, meaning the operator walks behind the unit using tiller/handle controls rather than riding on board.

What do the key specifications mean for this pallet truck?

The load capacity is rated at 4400 lb (2000 kg), giving it the strength to move standard palletized loads. The lifting height specification is 7.8 inches, and the unit uses a 1 kW drive motor paired with a 0.8 kW lift motor to power movement and lifting functions. Fork size is 1.97/5.9/45 inches, and the truck rides on PU tires for the driving and bearing wheels.

Is this a fully electric unit, and how is it operated?

Yes — the EP20JLi is classified as Full Powered Lithium, meaning both the drive system and lift system are fully electric. It operates in a walk-behind/tiller control style, with the battery being a Lithium (LiFePO4) type rated at 48V/20Ah.

How does the EP20JLi compare within the electric walkie pallet truck category?

Within its category, the EP20JLi is positioned around high uptime, reduced operator fatigue, and improved productivity thanks to its lithium battery power and fully electric drive/lift systems. It also includes an electromagnetic brake system, making it a solid fit for dock, warehouse, and manufacturing floor environments where a durable, all-electric walkie unit is needed.

Compare models

	3300 Full Powered Lithium Electric	4000 Full Powered Lithium Electric	4400 Full Powered Lithium Electric THIS
Battery Weight（±5%）	21.1 LBS	21.1 LBS	26.4 LBS
Bearing wheel size	Φ2.91×3.66 Φ×w(Inch)	Φ2.91×3.66 Φ×w(Inch)	Φ3.15×2.36 Φ×w(Inch)
Capacity	3300 Q (LBS)	4000 Q (LBS)	4400 Q (LBS)
Driving Speed，load/unload	2.6/2.8 (km/h)	2.6/2.8 (km/h)	4.2/4.5 (km/h)
Price	$2,888.00 $2,743.60	$3,228.00 $3,066.60	$3,228.00 $3,066.60
	Check ›	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
