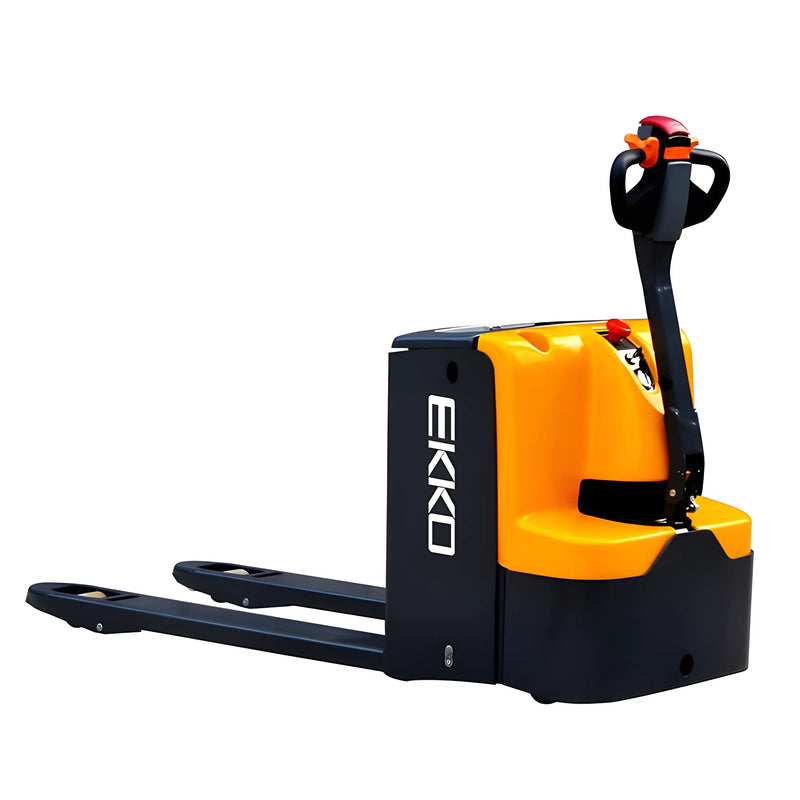

EKKO EP20E electric pallet jack in yellow and black with ergonomic handle for warehouse use

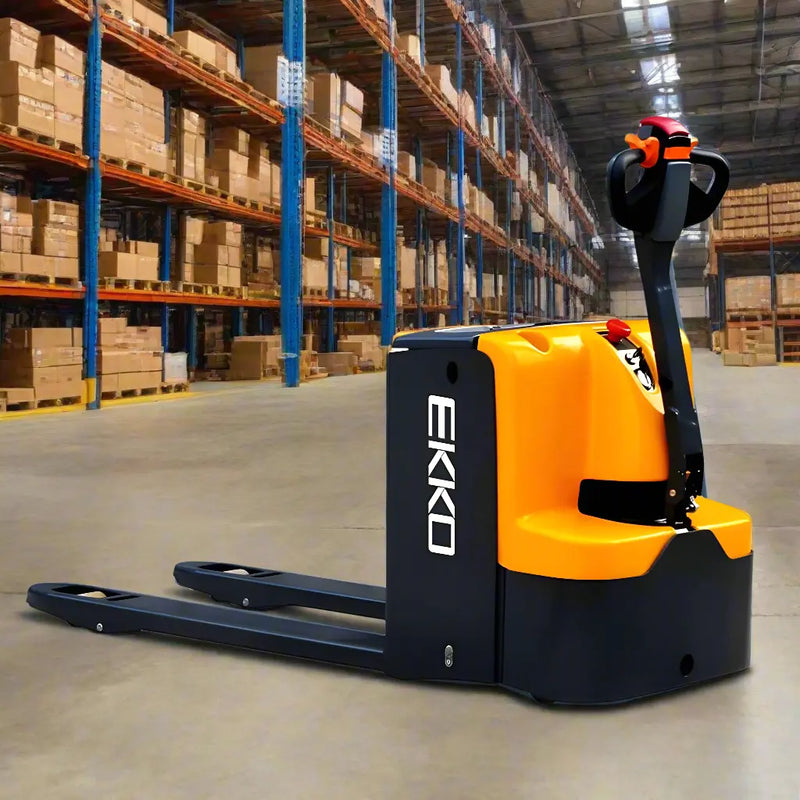

EKKO EP20E electric pallet jack in warehouse with yellow and black body and ergonomic handle

Technical drawing of EKKO EP20E pallet jack showing dimensions and specifications

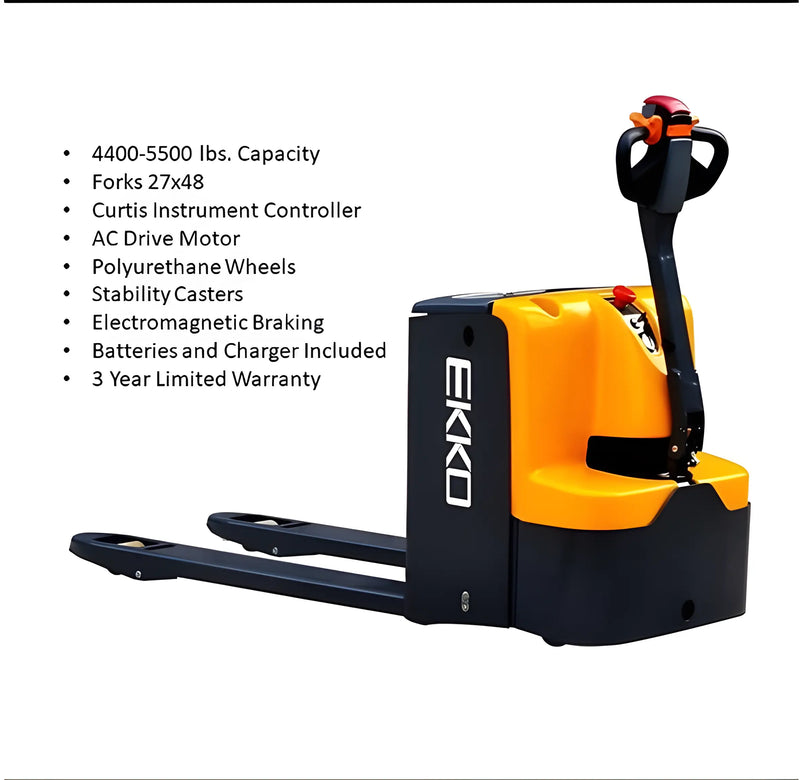

EKKO EP20E electric pallet jack with 4400-5500 lbs capacity and polyurethane wheels

EKKO EP20E compact electric pallet jack in yellow and black for material handling with forklift features

EKKO EP20E | Electric Walkie Pallet Truck | with 4400 lb Load Capacity

Name: EKKO EP20E | Electric Walkie Pallet Truck | with 4400 lb Load Capacity
Brand: EKKO
SKU: EP20E
Price: 6781.1 USD
Availability: InStock

See more by EKKO

$356.90 Off Limited time deal

$7,138.00

$7,138.00 - $7,138.00

$7,138.00

$6,781.10

$6,781.10 - $6,781.10

$6,781.10

In stock

SKU EP20E

Quantity

Product Overview

In short

The EKKO EP20E is an electric walkie pallet truck built for warehouse, distribution, and loading dock use, with a load capacity of 4400 lb (2000 kg). It features an electric drive system and an electric lift system, with a lift height of 7.9 in, making it suited for daily pallet transport and general material movement.

The EKKO EP20E Electric Walkie Pallet Truck is built for efficient, everyday pallet transport in busy warehouse and distribution environments. With a 4400 lb load capacity and full electric drive and lift, it reduces operator fatigue while keeping material handling smooth and productive. Its compact walk-behind design makes it a practical choice for facilities needing reliable, maneuverable equipment.

Key Benefits

Strong Load Capacity: Handles up to 4400 lbs with a 24 in load center for demanding pallet transport tasks.
Electric Drive & Lift: 1.3 kW drive motor and 0.8 kW lift motor deliver smooth, controlled acceleration and lifting.
Compact Maneuverability: 28 in overall width and 60 in turning radius allow navigation through narrow aisles and tight spaces.
Reliable Braking: Electromagnetic brake system supports safe, controlled stops during operation.
Long-Lasting Power: 24V/100Ah lithium battery with 24V/30A charger supports daily use with dependable runtime.
Operator Comfort: Noise level of 68 dB(A) at the operator seat contributes to a quieter working environment.

The EKKO EP20E is well suited for warehouses, distribution centers, retail backrooms, and loading docks where daily pallet transport and material movement are routine. Its electric drive and lift, combined with a compact walkie design, make it a strong fit for operations seeking improved productivity, smoother control, and reduced operator strain compared to manual pallet jacks.

Specification Table

EP20E · Full Electric Pallet TruckSKU EP20E
Lift	Electric
Drive	Electric
Load capacity	4400 (lbs)
Load center	24 (in)
Wheel base	53 (in)
Lowered fork height	3.3 (in)
Lifting height	7.9 (in)
Overall length	71.2 (in)
Overall width	28 (in)
Fork size	2/6/48 s/e/l (in)
Outside distance of fork	27 (in)
Turning radius	60 (in)
Lifting speed, laden/unladen	0.8/1.1 (in/s)
Lowering speed, laden/unladen	1.5/1.5 (in/s)
Max gradient performance laden/unladen	8/15 (%)
Brake type	electromagnetic
Drive motor	1.3 (kW)
Lift motor	0.8 (kW)
Charger	24V/30A (V/A)
Battery voltage/rated capacity	24/100 Lithium (V/Ah)
Type of the drive motor	AC Motor speed control
Noise level at operator sear	68 (dB(A))
Service weight（with battery）	755 (lbs)
Brand / Model	EKKO EP20E
Power Source	Electric
Operation Style	Walk-Behind / Tiller Control
Drive System	Electric Drive
Lift System	Electric Lift
Primary Applications	Warehouse, Distribution, Retail Backroom, Loading Dock
Best Use Case	Daily pallet transport and material movement
Key Benefits	Reduced fatigue, improved productivity, smooth control

FAQ about this model

What applications and loads is the EKKO EP20E suited for?

The EP20E is designed for warehouse, distribution, retail backroom, and loading dock environments. With a load capacity of 4400 lb (2000 kg), it is best suited for daily pallet transport and general material movement tasks.

What are the key specifications of the EP20E?

The EP20E has a load capacity of 4400 lb (2000 kg), a load center of 24 in, and a lifting height of 7.9 in with a lowered fork height of 3.3 in. Fork size is 2/6/48 in (s/e/l), overall length is 71.2 in, overall width is 28 in, and the turning radius is 60 in. Service weight with battery is 860 lbs.

How does the EP20E operate, and what type of drive and lift system does it use?

The EP20E is a walk-behind (tiller control) electric walkie pallet truck with both an electric drive system and an electric lift system. The drive motor is rated at 1.3 kW and the lift motor at 0.8 kW, using an AC motor speed control type drive motor. Braking is handled by an electromagnetic brake system. Lifting speed is 0.8/1.1 in/s (laden/unladen) and lowering speed is 1.5/1.5 in/s (laden/unladen). Maximum gradient performance is 8% laden and 15% unladen.

What benefits does the EP20E offer compared to other equipment in its category?

As an electric walkie pallet truck, the EP20E offers reduced operator fatigue, improved productivity, and smooth control compared to manual pallet jacks, thanks to its electric drive and lift systems. It operates at a noise level of 68 dB(A) at the operator's ear, and runs on a 24V/160Ah battery with a 24V/15A charger.

Compare models

	5500 Electric Walkie Pallet Truck	4400 Electric Walkie Pallet Truck THIS
Capacity	5500 (lbs)	4400 (lbs)
Lowered fork height	3.33 (in)	3.3 (in)
Overall width	27.5 (in)	28 (in)
Best Use Case	Heavy pallet transport and daily material handling	Daily pallet transport and material movement
Price	$8,158.00 $7,750.10	$7,138.00 $6,781.10
	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
