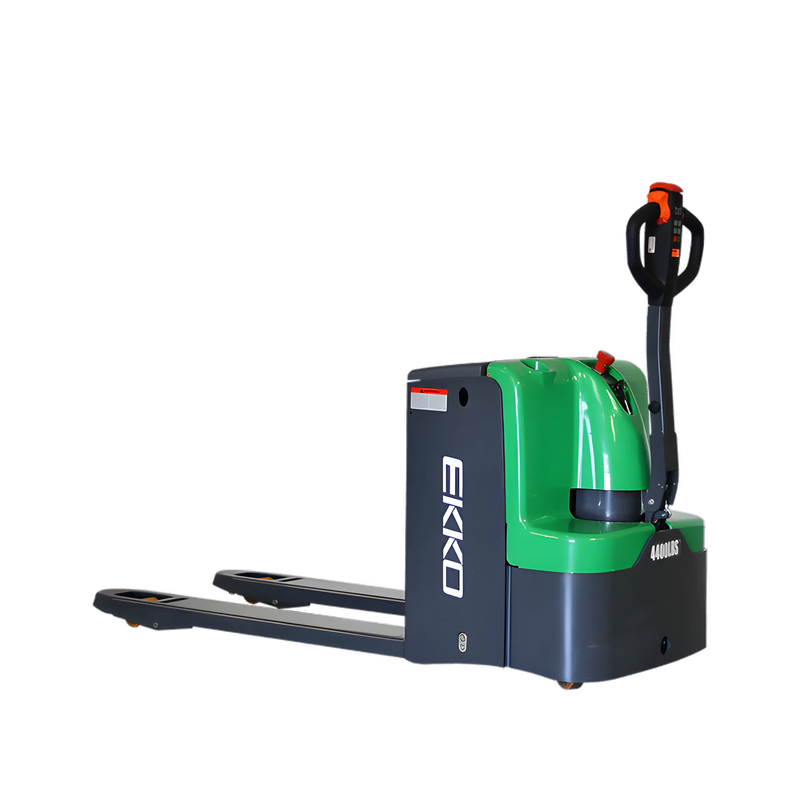

EKKO EP20E-Li Walkie Pallet Jack 4400lbs. Capacity

Name: EKKO EP20E-Li Walkie Pallet Jack 4400lbs. Capacity
Brand: EKKO
SKU: EP20E-LI
Price: 7750.1 USD
Availability: InStock

See more by EKKO

$407.90 Off Limited time deal

$8,158.00

$8,158.00 - $8,158.00

$8,158.00

$7,750.10

$7,750.10 - $7,750.10

$7,750.10

In stock

SKU EP20E-LI

Quantity

Product Overview

In short

The EKKO EP20E-Li is an electric walkie pallet jack with a 4,400 lb (2,000 kg) load capacity, powered by a 24V lithium battery for both drive and lift functions. It offers a 7.9-inch lifting height with 27x48-inch forks, making it suited for daily pallet transport in warehouses, distribution centers, loading docks, and retail backrooms.

The EKKO EP20E-Li Walkie Pallet Jack is an electric-drive, electric-lift material handling solution built for fast, efficient pallet transport in warehouses, distribution centers, retail backrooms, and loading docks. With a 4400-lb load capacity and lithium battery power, it delivers consistent daily performance while reducing operator fatigue compared to manual jacks. Its compact walk-behind design makes it easy to maneuver through busy, space-constrained work areas.

Key Features & Benefits

Strong Load Capacity: Handles up to 4400 lbs with a 24-in load center for efficient pallet transport.
Lithium Battery Power: 24V/100Ah lithium battery with a 24V/30A charger supports fast charging and high uptime.
Electric Drive & Lift: 1.3 kW drive motor and 0.8 kW lift motor with AC motor speed control provide smooth, reliable operation.
Compact Maneuverability: 71.2-in overall length, 28-in overall width, and a 60-in turning radius allow navigation through tight aisles.
Operator Comfort: Walk-behind tiller control design and a 68 dB(A) noise level at the operator seat support reduced fatigue during extended use.
Dependable Braking: Electromagnetic brake system supports safe, controlled stops during daily operation.

The EP20E-Li is well suited for daily pallet transport and material handling tasks across warehouse floors, distribution centers, retail backrooms, and loading dock operations. Its electric drive and lift systems, combined with a compact walkie design, make it a practical choice for facilities that require efficient, repeatable pallet movement in tight or high-traffic spaces.

Specification Table

EP20E-LI · Full Electric Pallet TruckSKU EP20E-LI
Lift	Electric
Drive	Electric
Load capacity	4400 (lbs)
Load center	24 (in)
Wheel base	53 (in)
Lowered fork height	3.3 (in)
Lifting height	7.9 (in)
Overall length	71.2 (in)
Overall width	28 (in)
Fork size	2/6/48 s/e/l (in)
Outside distance of fork	27 (in)
Turning radius	60 (in)
Lifting speed, laden/unladen	0.8/1.1 (in/s)
Lowering speed, laden/unladen	1.5/1.5 (in/s)
Max gradient performance laden/unladen	8/15 (%)
Brake type	electromagnetic
Drive motor	1.3 (kW)
Lift motor	0.8 (kW)
Charger	24V/30A (V/A)
Battery voltage/rated capacity	24/100 Lithium (V/Ah)
Type of the drive motor	AC Motor speed control
Noise level at operator sear	68 (dB(A))
Service weight（with battery）	755 (lbs)
Brand / Model	EKKO EP20E-Li
Power Source	Lithium Battery
Operation Style	Walk-Behind / Tiller Control
Drive System	Electric Drive
Lift System	Electric Lift
Primary Applications	Warehouse, Distribution, Loading Dock, Retail Backroom
Best Use Case	Daily pallet transport and material handling
Key Benefits	Fast charging, reduced fatigue, high uptime, smooth handling

FAQ about this model

What applications and load types is the EKKO EP20E-Li suited for?

The EP20E-Li is designed for warehouse, distribution, loading dock, and retail backroom environments. With a 4,400 lb (2,000 kg) load capacity, it is built for daily pallet transport and general material handling tasks where reliable, repeated pallet movement is needed.

What do the key specifications mean for daily use?

The unit has a load capacity of 4,400 lbs (2,000 kg) with a 24-inch load center, and forks sized at 2/6/48 inches (thickness/width/length) with a 27-inch outside fork distance. Lift height is 7.9 inches, with a lowered fork height of 3.3 inches, allowing it to handle standard pallets. Overall dimensions are 71.2 inches in length and 28 inches wide, with a 60-inch turning radius for maneuvering in warehouse aisles.

Is the EP20E-Li fully electric, and how does it operate?

Yes, the EP20E-Li features both electric drive and electric lift systems, powered by a 24V/100Ah lithium battery. It uses an AC motor with speed control for the drive system, a 1.3 kW drive motor, and a 0.8 kW lift motor. The unit is walk-behind (tiller-controlled) and includes an electromagnetic brake system. It also features a 24V/30A charger for battery charging.

How does the EP20E-Li compare within the walkie pallet jack category?

Within its category, the EP20E-Li stands out for combining full electric drive and lift functionality in a compact walk-behind design. Its lithium battery system supports fast charging, and the AC motor drive contributes to reduced fatigue and high uptime for operators. At 755 lbs service weight (with battery) and a noise level of 68 dB(A) at the operator's seat, it is built for smooth, efficient pallet handling in daily-use warehouse settings.

Compare models

	EP25E- EKKO EP25E-Li Walkie Pallet	EP20E- EKKO EP20E-Li Walkie Pallet THIS
Capacity	5500 (lbs)	4400 (lbs)
Lowered fork height	3.33 (in)	3.3 (in)
Overall width	27.5 (in)	28 (in)
Best Use Case	Heavy pallet transport and daily material handling	Daily pallet transport and material handling
Price	$9,008.00 $8,557.60	$8,158.00 $7,750.10
	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
