EKKO EP15JLi electric pallet jack with ergonomic handle and green and gray body

EKKO EP15JLi electric pallet jack in warehouse aisle with shelves of boxes

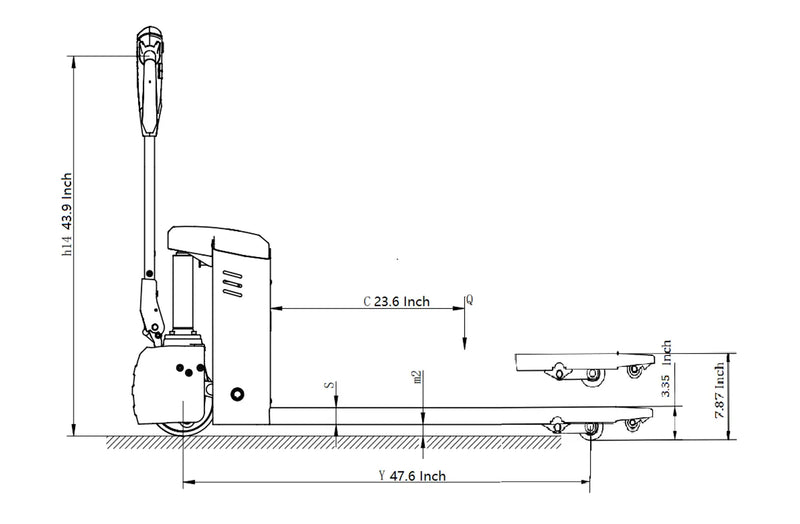

Technical drawing of EKKO EP15JLi pallet jack with detailed dimensions in inches

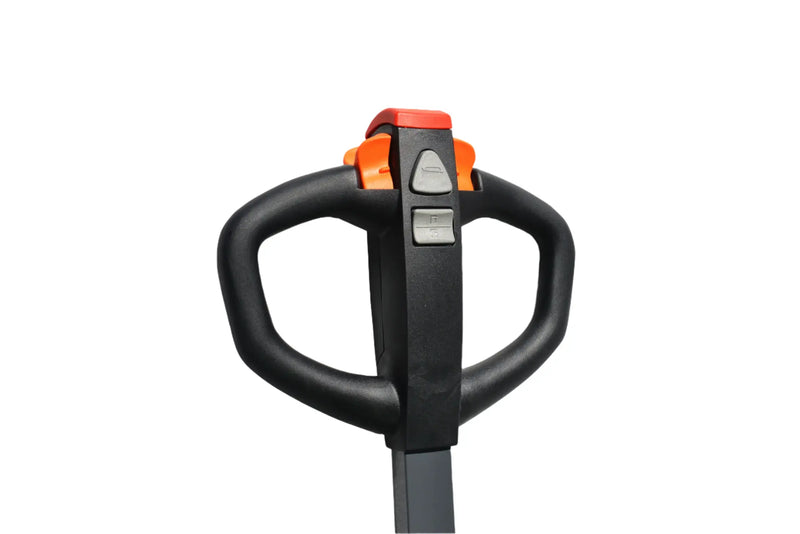

Handle grip of EKKO EP15JLi pallet jack with black sturdy design and orange control buttons

Control handle of EKKO EP15JLi electric pallet jack with buttons and display panel

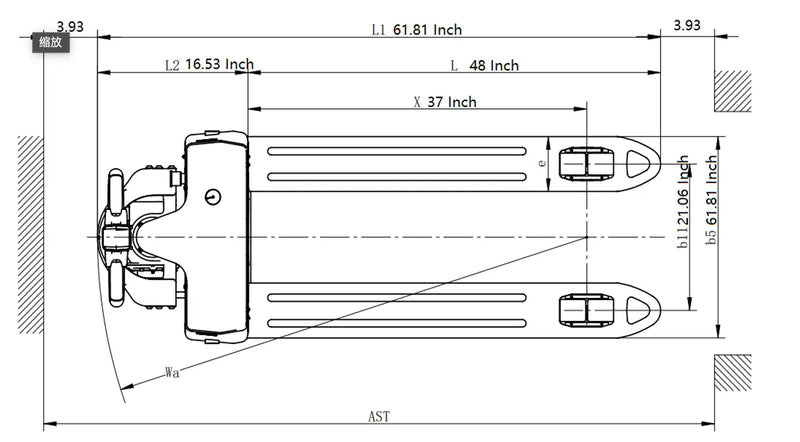

Technical drawing with dimensions for EKKO EP15JLi pallet truck showing top view measurements

EKKO EP15JLi | Full Powered Lithium | Electric Walkie Pallet Truck | with 3300 lb Load Capacity

Name: EKKO EP15JLi | Full Powered Lithium | Electric Walkie Pallet Truck | with 3300 lb Load Capacity
Brand: EKKO
SKU: EP15JLIC
Price: 2743.6 USD
Availability: InStock

See more by EKKO

$144.40 Off Limited time deal

$2,888.00

$2,888.00 - $2,888.00

$2,888.00

$2,743.60

$2,743.60 - $2,743.60

$2,743.60

In stock

SKU EP15JLIC

Quantity

Product Overview

In short

The EKKO EP15JLi is a full powered lithium electric walkie pallet truck with a 3300 lb (1500 kg) load capacity and a lifting height of 7.48 in. It features fully electric drive and lift systems with walk-behind/tiller control, designed for warehouse, stockroom, distribution, and dock use.

Designed for maximum efficiency and reliability in the movement of pallets in warehouse, stockroom and distribution settings; this EKKO EP15JLi Lithium Electric Walkie Pallet Truck is capable of moving pallets up to 3300 lbs in weight efficiently and reduces operator fatigue by significantly increasing workflow speeds. The EKKO EP15JLi Lithium Electric Walkie Pallet Truck has a fully powered electric drive and lift system that provides a smooth ride while traveling and lifting pallets as well as providing a stable lift and precision pallet handling in high traffic work areas.

Advanced lithium battery technology is utilized to provide fast charging capabilities, a long service life, and low maintenance to increase uptime and minimize operational costs. The compact design of the walkie allows for excellent maneuverability in narrow aisles and the ergonomic tiller controls on the truck promote safe and productive handling of materials each day.

Key Features

• A 3300 lb load capacity for efficient pallet handling

• Full Power Electric Drive & Lift System for smooth operation and increased productivity

• Lithium Battery Technology for quick charging and long service life

• Compact Walkie Design for ease of use in narrow aisle applications and tight spaces

• Ergonomic Tiller Controls for safer and more comfortable pallet handling

Specification Table

EP15JLIC · Full Electric Pallet TruckSKU EP15JLIC
Drive type	Electric
Manner of operation	Walkie
Load Capacity	3300 Q (LBS)
Load Centre	23.6 c (Inch)
Axle centre to fork face	37 x (Inch)
Wheel Base	50.3 y (Inch)
Tire material	Polyurethane
Driving wheel size	Φ8.27×2.95 Φ×w(Inch)
Bearing wheel size	Φ2.91×3.66 Φ×w(Inch)
Qty of wheel，Front/Rear（x=driving wheel）	1x/2
Tread	21.06 b11 (Inch)
Lifting Height	7.48 h3 (Inch)
The height of handle in the operation position	48.2 h14 (Inch)
Lowered fork height	2.95 h13 (Inch)
Overall Length	64 l1 (Inch)
Body Length	16.53 l2 (Inch)
Overall Width	27 b1/ b2 (Inch)
Fork Size	2.24/6.3/45.28 s/e/l (Inch)
Fork Width	27 b5 (Inch)
Min.Ground clearance	1.06 m2 (Inch)
Aisle width for pallets 39.37*47.24 crossways	88.9 Ast (Inch)
Aisle width for pallets 31.5*47.24 lengthways	83.9 Ast (Inch)
Turing Radius	57.5 Wa (Inch)
Driving Speed，load/unload	2.6/2.8 (km/h)
Maximum gradeability load/unload	0.24/0.39 (in/s)
Brake Type	Electromagnetic brake
Drive Motor	0.75 (kW)
Lift Motor	0.8 (kW)
Lithium LiFePO4 Battery voltage rate capacity	24/30 (V/Ah)
Battery Weight（±5%）	21.1 LBS
Type of drive control	DC
Noise level	≤70 (dB(A))
Service Weight（with battery）	328 LBS
Brand / Model	EKKO EP15JLi
Power Type	Full Powered Lithium
Battery Type	Lithium Battery
Operation Style	Walk-Behind / Tiller Control
Drive System	Fully Electric Drive
Lift System	Fully Electric Lift
Primary Application	Warehouse, Stockrooms, Distribution, Dock Use
Key Benefits	Fast charging, low maintenance, improved productivity, reduced fatigue

FAQ about this model

What applications and loads is the EKKO EP15JLi suited for?

The EP15JLi is built for warehouse, stockroom, distribution, and dock use. It carries loads up to 3300 lb (1500 kg), making it suitable for moving palletized goods in retail stockrooms, factory floors, and general warehouse environments.

What are the key specifications of the EP15JLi?

The EP15JLi has a load capacity of 3300 lb (1500 kg) and a lifting height of 7.48 in. It has an overall length of 64 in, an overall width of 27 in, and a fork size of 2.24/6.3/45.28 in. The truck rides on polyurethane tires and uses an electromagnetic brake system.

What type of power and operation does the EP15JLi use?

The EP15JLi is a full powered lithium unit equipped with a Lithium (LiFePO4) battery. It has a fully electric drive system and a fully electric lift system, operated in a walk-behind/tiller control style, with a drive motor rated at 0.75 kW and a lift motor rated at 0.8 kW.

How does the EP15JLi compare within the electric walkie pallet truck category?

As a full powered lithium model, the EP15JLi offers fast charging, low maintenance, improved productivity, and reduced operator fatigue compared to standard walkie pallet trucks. Its fully electric drive and lift systems, combined with a 3300 lb load capacity, position it as a capable option for facilities seeking electrified material handling for warehouse and dock operations.

Compare models

	3300 Full Powered Lithium Electric THIS	4000 Full Powered Lithium Electric	4400 Full Powered Lithium Electric
Battery Weight（±5%）	21.1 LBS	21.1 LBS	26.4 LBS
Bearing wheel size	Φ2.91×3.66 Φ×w(Inch)	Φ2.91×3.66 Φ×w(Inch)	Φ3.15×2.36 Φ×w(Inch)
Capacity	3300 Q (LBS)	4000 Q (LBS)	4400 Q (LBS)
Driving Speed，load/unload	2.6/2.8 (km/h)	2.6/2.8 (km/h)	4.2/4.5 (km/h)
Price	$2,888.00 $2,743.60	$3,228.00 $3,066.60	$3,228.00 $3,066.60
	Viewing	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.

Documents

EKKO EP15JLi User's Manual
