EKKO EB16EA | Electric Straddle Stacker | 216" Lift Height | 4400 lb Capacity

$863.90 Off Limited time deal Save $863.90
Original price $17,278.00
Original price $17,278.00 - Original price $17,278.00
Original price $17,278.00
Current price $16,414.10
$16,414.10 - $16,414.10
Current price $16,414.10
In stock
SKU EB16EA
$100 off orders $2,000+ code WELCOME at checkout
No sales tax in most states savings applied at checkout

Product Overview
In short
The EKKO EB16EA is an electric straddle stacker built for warehouse, distribution center, and industrial storage use. It delivers a 4400 lb (2000 kg) load capacity with a maximum lift height of 216 inches, combining walk-behind operation with electric drive and electric lift systems.

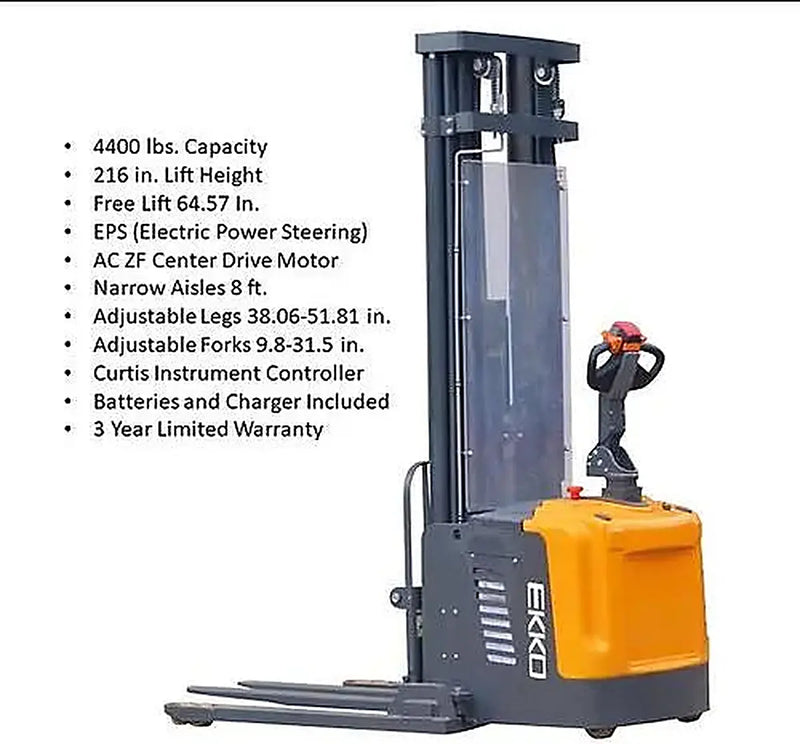

The EKKO EB16EA Electric Straddle Stacker is a walk-behind, fully electric lift solution engineered for high-rack warehouse and distribution environments. With a 216-inch maximum lift height and a 4400-lb load capacity, it is designed to move and stack palletized loads efficiently and safely. Its straddle-leg design and electric power steering deliver stability and control in demanding vertical storage operations.

Key Features & Benefits

  • Heavy-Duty Capacity: Handles loads up to 4400 lb with a 24-inch load center for reliable pallet handling.
  • High-Lift Performance: Reaches a maximum lift height of 216 inches, with 76.25 inches of free lift for high-rack storage applications.
  • Electric Power Steering: EPS technology supports smooth maneuverability and reduced operator effort.
  • Adjustable Straddle Legs: Fixed leg length of 42 inches with adjustable legs ranging from 38.06 to 51.81 inches accommodate varying pallet types and widths.
  • Electric Drive & Lift Systems: A 3000-watt lifting motor and 3000-watt AC driving motor provide controlled, efficient operation with laden/unladen driving speeds of 5.2/5.5 km/h.
  • Compact Maneuverability: A 69.09-inch turning radius and 81.69-inch overall length allow for efficient navigation in warehouse aisles.

The EKKO EB16EA is well-suited for warehouses, distribution centers, and industrial storage facilities that require high-level vertical stacking and efficient pallet handling. Its straddle-leg design and electric drive system make it a practical choice for operations focused on maximizing storage density while maintaining safe, controlled load movement.

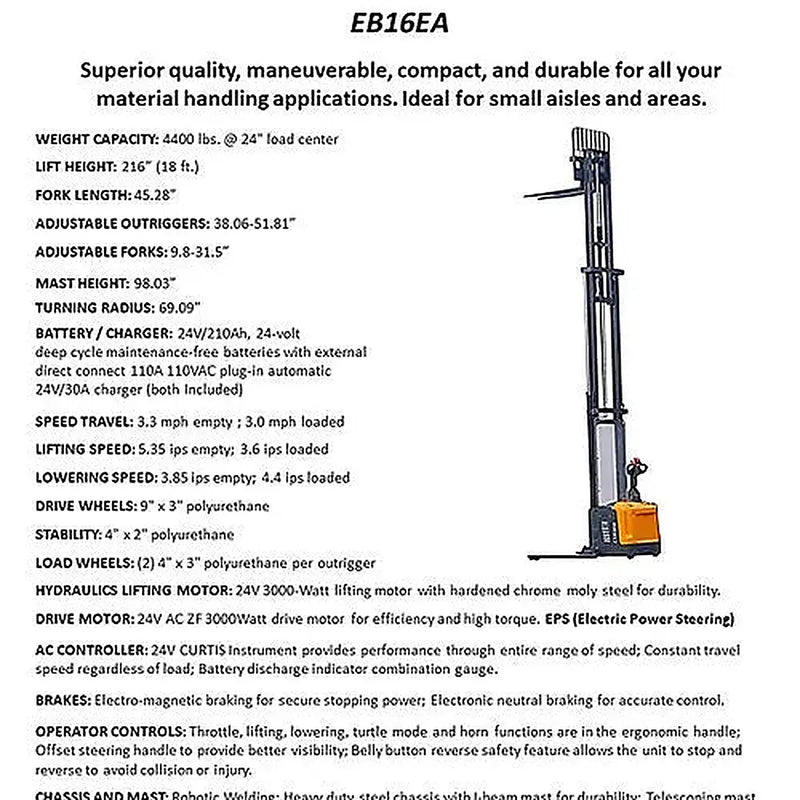

Specification Table
EB16EA · Full Electric Pallet StackerSKU EB16EA
Load capacity4400 (lb)
The max. lifting height216 (in)
Load center distance24 (in)
Free Lift76.25 (in)
EPS (Elec. Power Steer)Yes
Fork length45.28 (in)
Single fork width4.7 (in)
Overall fork width9.8-31.5 (in)
Lowered fork height1.58 (in)
Fixed leg length42 (in)
Adjustable legs38.06-51.81 (in)
Turning radius69.09 (in)
Overall length81.69 (in)
Max width46.93-60.71 (in)
Extended mast height253.15 (in)
Lowered mast height98.03 (in)
Battery voltage24/210Ah (V/Ah)
Charger24V/30A (V/A)
Lifting Motor3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s (W)
AC Driving Motor3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h (W)
Service Weight3542 (lb)
Brand / ModelEKKO EB16EA
Stacker DesignStraddle Leg
Power SourceElectric
Maximum Lift Height216 in (Approx. 5486 mm)
Operation StyleWalk-Behind
Drive SystemElectric Drive
Lift SystemElectric Lift
Primary ApplicationsWarehouse, Distribution Centers, Industrial Storage
FAQ about this model

What applications and loads is the EKKO EB16EA suited for?

The EB16EA is designed for warehouse, distribution center, and industrial storage applications. It handles loads up to 4400 lb (2000 kg), with a load center distance of 24 in, making it suitable for palletized loads and vertical storage tasks in these environments.

What do the key specifications mean for this stacker?

The 4400 lb (2000 kg) load capacity indicates the maximum weight the unit can safely lift, while the 216 in maximum lift height (with a 76.25 in free lift and 253.15 in extended mast height) determines how high loads can be raised for storage or retrieval. The fork length is 45.28 in, with an overall fork width adjustable from 9.8 to 31.5 in to accommodate different pallet types.

What type of power and operation does the EB16EA use?

This stacker uses an electric drive system paired with an electric lift system, and it includes electric power steering (EPS). It is operated in a walk-behind style, with a 3000 Watt lifting motor and a 3000 Watt AC driving motor powering its lift and travel functions. It runs on a 24V/210Ah battery with a 24V/30A charger.

How does the EB16EA compare within the straddle stacker category?

As described in its product overview, the EB16EA is positioned to deliver the capabilities of a forklift, reach truck, and walkie stacker in a single compact machine. Its straddle leg design, adjustable legs (38.06-51.81 in), and 69.09 in turning radius support maneuverability in confined warehouse aisles while still reaching a 216 in lift height and 4400 lb capacity.

Compare models
 4400 Electric Straddle Stacker 216"
THIS
4400 Electric Straddle Stacker 177"2800 Electric Straddle Stacker 119"
Capacity4400 (lb)4400 (lb)2800 (lbs)
Fixed leg length42 (in)42 (in)36.5 (in)
Forks45.28 (in)45.3 (in)45.3 (in)
Lift Height216 (in)177 (in)119” (in)
Price$17,278.00 $16,414.10$16,502.00 $15,676.90$5,888.00 $5,299.10
ViewingCheck ›Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.
