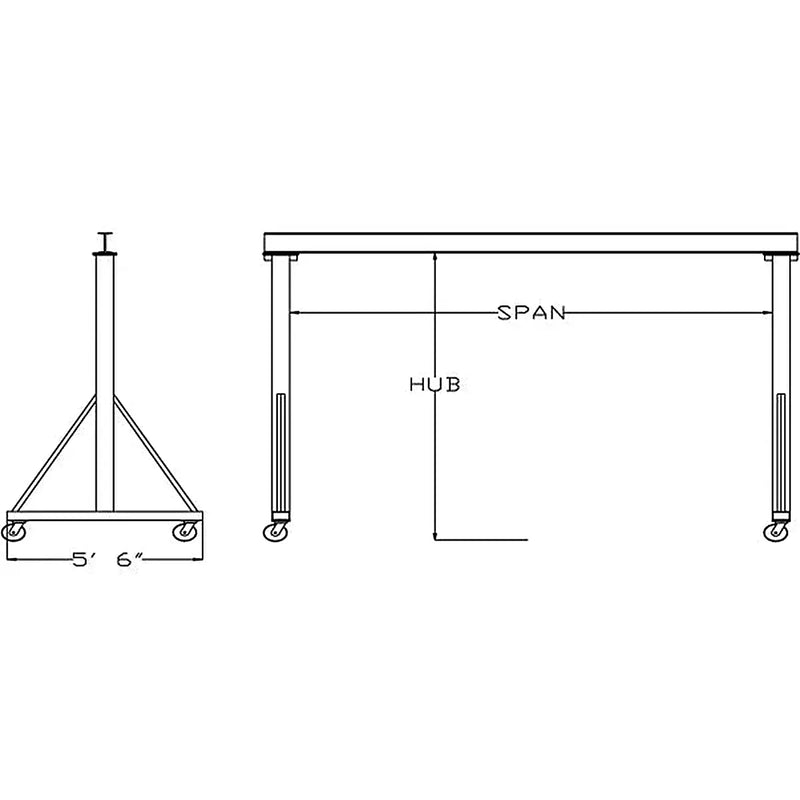

Technical drawing of a gantry crane showing dimensions and specifications.

All Lift Cranes FG-Series Fixed Height Gantry Crane | 5 Ton Capacity

Name: All Lift Cranes FG-Series Fixed Height Gantry Crane | 5 Ton Capacity
Brand: All Lift Cranes
SKU: FG5-812
Price: 7561.0 USD
Availability: InStock

See more by All Lift Cranes

$7,561.00 - $11,034.00

$7,561.00

$7,561.00 - $11,034.00

$7,561.00

In stock

SKU FG5-812

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

Quantity

Product Overview

In short

The All Lift Cranes FG-Series is a fixed height steel gantry crane rated for 5 ton capacity, available in HUB heights from 8 ft to 16 ft and spans from 12 ft to 16 ft. It's manufactured in the USA by All Lift Cranes, Inc. in Appleton, Wisconsin, and backed by a 3-year warranty on materials and workmanship. Each unit ships with swivel casters and is designed to pair with standard hoists such as CM, R&M, or Yale.

The All Lift Cranes FG-Series Fixed Height Gantry Crane is a 5 ton capacity steel gantry built for facilities that need a dependable, stationary lifting solution. It's available in HUB heights of 8 ft, 10 ft, 12 ft, and 16 ft, paired with span options of 12 ft, 14 ft, and 16 ft, giving you 12 configurations to match your workspace and lift height requirements.

As a fixed height gantry crane, the FG-Series includes swivel casters, allowing the unit to be repositioned within a facility as work areas change. Unit weights range from 1,718 lbs to 2,683 lbs depending on the HUB height and span selected, and the crane is designed to pair with standard hoists from manufacturers such as CM, R&M, and Yale.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA. Every FG-Series crane is backed by a 3-year warranty covering material and workmanship, with parts replaced free FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
FG5-812	8 ft	12 ft	1,718
FG5-814	8 ft	14 ft	1,909
FG5-816	8 ft	16 ft	2,227
FG5-1012	10 ft	12 ft	1,832
FG5-1014	10 ft	14 ft	2,023
FG5-1016	10 ft	16 ft	2,341
FG5-1212	12 ft	12 ft	1,946
FG5-1214	12 ft	14 ft	2,137
FG5-1216	12 ft	16 ft	2,455
FG5-1612	16 ft	12 ft	2,174
FG5-1614	16 ft	14 ft	2,365
FG5-1616	16 ft	16 ft	2,683

FAQ about this model

How do I choose the right HUB height and span for my FG-Series crane?

The FG5 Series is available in HUB heights of 8 ft, 10 ft, 12 ft, and 16 ft, combined with spans of 12 ft, 14 ft, or 16 ft. Select the HUB height based on the vertical lifting clearance you need, and the span based on the width of the area you need to cover.

What's involved in installing the FG-Series gantry crane?

The FG-Series is a fixed height steel gantry crane that includes swivel casters, so it can be positioned and repositioned within your facility without a fixed foundation installation.

What warranty comes with the FG-Series crane?

All Lift Cranes, Inc. backs the FG-Series with a 3-year warranty covering material and workmanship, with parts replaced free FOB job site.

Is the FG-Series compatible with my hoist?

Yes, the FG-Series is designed to pair with standard hoists, including models from CM, R&M, and Yale.

Compare models

	2 Ton Capacity	3 Ton Capacity	1 Ton Capacity	4 Ton Capacity	5 Ton Capacity THIS
Weight	898–2074	1153–2473	869–1526	1669–2554	1718–2683
HUB Height	8–16 ft	8–16 ft	8–16 ft	8–16 ft	8–16 ft
Span	12–16 ft	12–16 ft	12–16 ft	12–16 ft	12–16 ft
Price	$4,388.00	$5,605.00	$3,071.00	$7,389.00	$7,561.00
	Check ›	Check ›	Check ›	Check ›	Viewing

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
