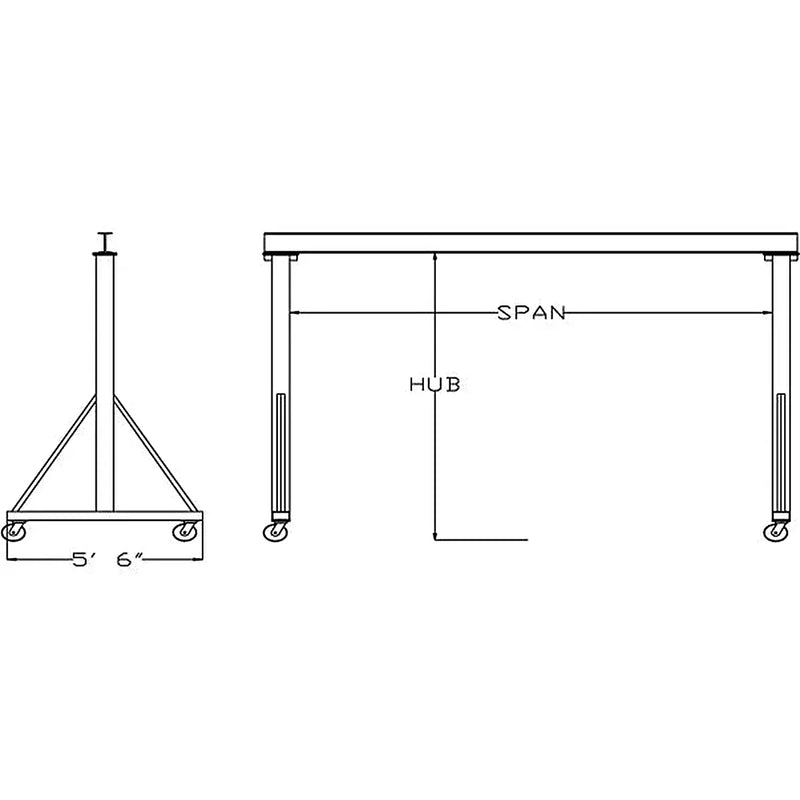

Technical drawing of a gantry crane showing dimensions and specifications.

All Lift Cranes FG-Series Fixed Height Gantry Crane | 2 Ton Capacity

Name: All Lift Cranes FG-Series Fixed Height Gantry Crane | 2 Ton Capacity
Brand: All Lift Cranes
SKU: FG2-812
Price: 4388.0 USD
Availability: InStock

See more by All Lift Cranes

$4,388.00 - $7,675.00

$4,388.00

$4,388.00 - $7,675.00

$4,388.00

In stock

SKU FG2-812

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

Quantity

Product Overview

In short

The All Lift Cranes FG-Series Fixed Height Gantry Crane is a 2 ton capacity steel gantry crane available in HUB heights from 8 ft to 16 ft and spans from 12 ft to 16 ft, giving 12 fixed configurations to match your workspace. It ships with swivel casters and is manufactured in Appleton, Wisconsin, USA by family-owned All Lift Cranes, Inc., backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes FG-Series Fixed Height Gantry Crane is a 2 ton capacity steel gantry crane built for shops and job sites that need a dependable overhead lifting point without the cost of a permanent runway system. The FG2 line is offered in 12 fixed configurations, combining HUB heights of 8 ft, 10 ft, 12 ft, or 16 ft with spans of 12 ft, 14 ft, or 16 ft, so you can select the model that matches your ceiling clearance and load path.

Every FG2 gantry crane includes swivel casters, letting you reposition the crane around the shop or job site as your lifting needs change. Unit weights across the FG2 lineup range from 898 lbs to 2,074 lbs depending on the HUB height and span selected, with pricing from $4,388 to $7,675.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA. The FG2-Series is designed to pair with standard hoists from brands such as CM, R&M, and Yale, and every crane is backed by a 3-year warranty covering material and workmanship, with replacement parts shipped free FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
FG2-812	8 ft	12 ft	898
FG2-814	8 ft	14 ft	1,067
FG2-816	8 ft	16 ft	1,804
FG2-1012	10 ft	12 ft	961
FG2-1014	10 ft	14 ft	1,265
FG2-1016	10 ft	16 ft	1,894
FG2-1212	12 ft	12 ft	1,003
FG2-1214	12 ft	14 ft	1,325
FG2-1216	12 ft	16 ft	1,954
FG2-1612	16 ft	12 ft	1,249
FG2-1614	16 ft	14 ft	1,445
FG2-1616	16 ft	16 ft	2,074

FAQ about this model

How do I choose the right HUB height and span for my FG2 gantry crane?

The FG2-Series is available in HUB heights of 8 ft, 10 ft, 12 ft, or 16 ft, and spans of 12 ft, 14 ft, or 16 ft, for 12 total configurations (models FG2-812 through FG2-1616). Choose the HUB height based on your required lift height under the beam, and the span based on the width you need to cover between legs.

What's involved in installing an FG2 fixed height gantry crane?

The FG2 is a fixed height steel gantry crane that includes swivel casters, allowing it to be rolled into position rather than requiring a fixed foundation or permanent runway installation.

What warranty comes with the FG2-Series?

All Lift Cranes, Inc. backs the FG2-Series with a 3-year warranty on material and workmanship, with replacement parts shipped free FOB job site.

Will my hoist work with the FG2 gantry crane?

The FG2-Series is designed to pair with standard hoists from brands including CM, R&M, and Yale.

Compare models

	2 Ton Capacity THIS	3 Ton Capacity	1 Ton Capacity	4 Ton Capacity	5 Ton Capacity
Weight	898–2074	1153–2473	869–1526	1669–2554	1718–2683
HUB Height	8–16 ft	8–16 ft	8–16 ft	8–16 ft	8–16 ft
Span	12–16 ft	12–16 ft	12–16 ft	12–16 ft	12–16 ft
Price	$4,388.00	$5,605.00	$3,071.00	$7,389.00	$7,561.00
	Viewing	Check ›	Check ›	Check ›	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.
