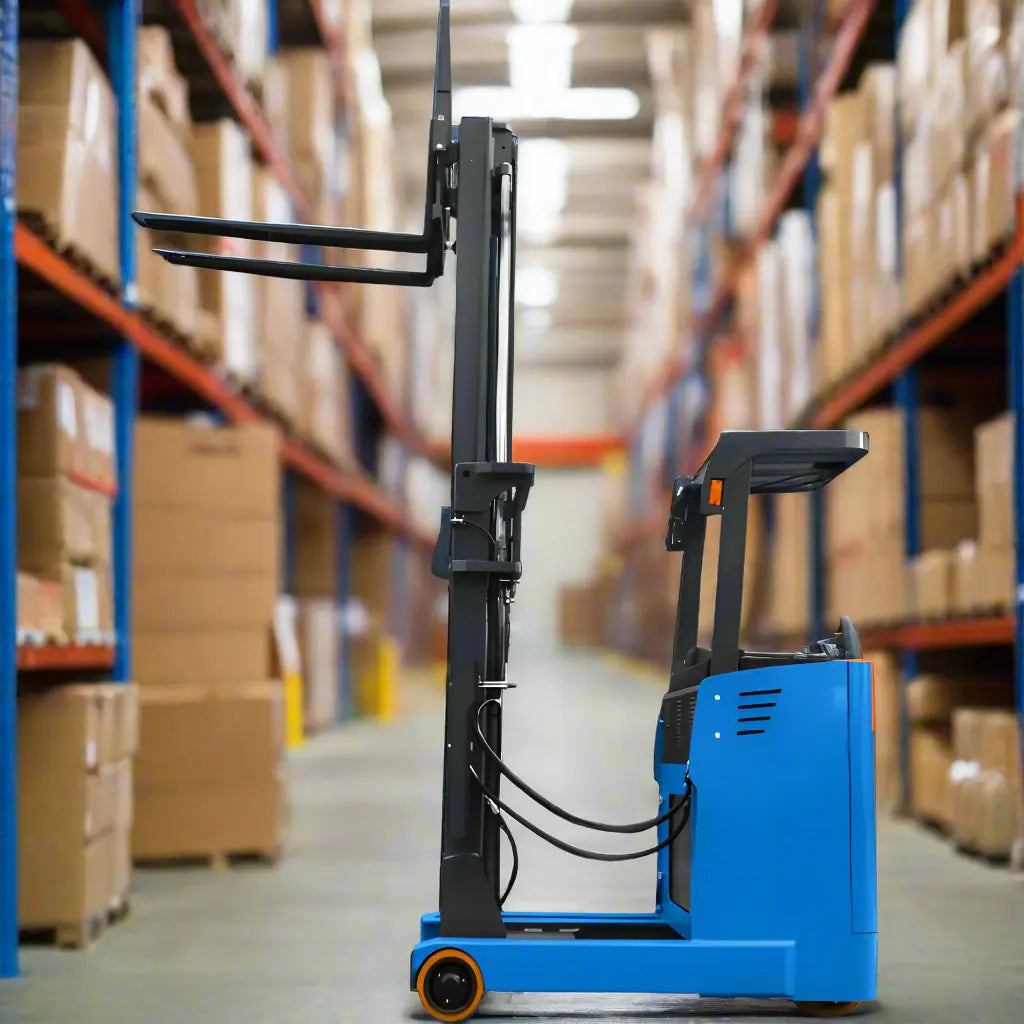

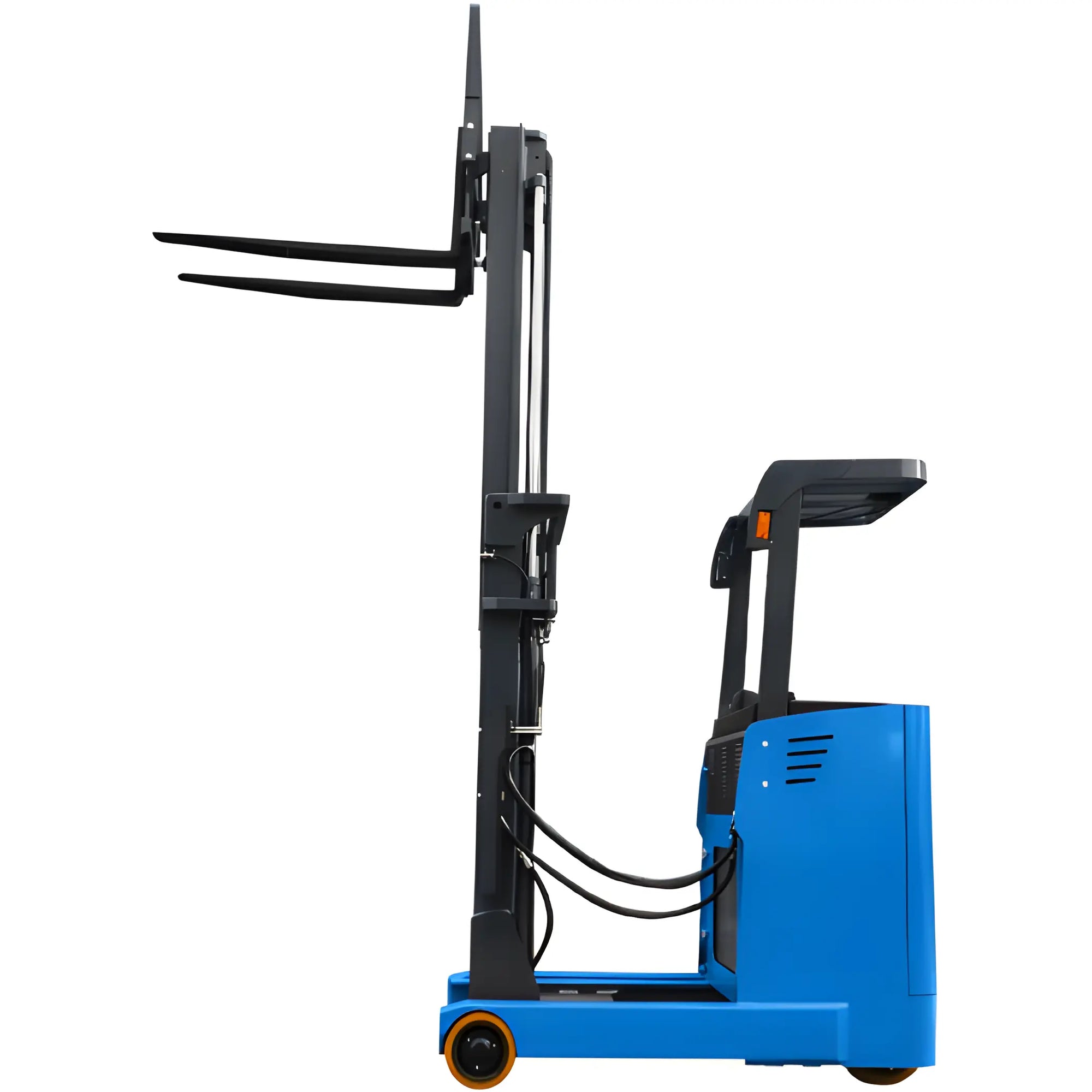

EOSLift LF25/30-Triplex | Electric Stand-Up Movable Mast Truck, 5511 lb / 6613 lb Cap

Stand-On Electric Reach Trucks with High Capacity and Enhanced Safety

The LF25 and LF30 stand-on electric reach trucks provide high lifting capacities, reliable AC motors, and ergonomic designs for efficient, safe material handling in demanding environments.

Features:

• High Rated Load: LF25 (5511.56 lbs) and LF30 (6613.87 lbs) for heavy loads in tight spaces
• AC Motors: Gradual control powered by 4.5 kW drive and 7.5 kW lifting motors
• Improved Safety: Auto deceleration, anti-skid brakes and sturdy overhead guard
• Ergonomic: Cushion Seat, User-friendly controls, Stand-on platform for comfort
• Sturdy Build: Built with ultra-strong steel, waterproof components, PU wheels to ensure durability

Product Description:

Designed to provide performance, safety, and operator comfort in fast-paced material handling applications, the LF25 and LF30 stand-on electric reach trucks can reach lift height up to 24 feet and 30 feet, respectively. Engineered to excel with a host of remarkable functions, these vehicles are built for tight spaces, heavy lifting, and ensuring smooth operations in different domains.

Impressive Lifting Capacity

The LF25 has an 5511.56 lbs rated capacity and the LF30 has an impressive 6613.87 lbs. These features make the two models ideal for tough operations, whether it is in a warehouse, distribution center or a manufacturing plant. The models are designed with maximal load distribution and optimum stability, even for large and bulky materials.

Load center is 19.68 inches for both models, helping the truck maintain a balanced load for improved lifting performance and safety. On top of that, the LF25 has a wheelbase of 52.95 inches - and the LF30 is capable of a wheelbase of 60.82 inches, adding to the stability of the truck when carrying heavy or uneven loads.

Efficient AC Motors

Powering the LF25 and LF30 are state-of-the-art AC motors for smooth, efficient operation. The 4.5 kW AC drive motor guarantees the powerful propulsion needed to move the truck, while the 7.5 kW AC lifting motor allows an excellent lifting performance.

Operational safety features for safeguard

When it comes to industrial equipment, safety must always come first, and LF25 and LF30 models deliver solutions. Automatic deceleration system on curves, both trucks have an automatic deceleration function when turning, slowing the truck for better stability and helping reduce the risk of tipping. The anti-skid braking system that is installed also helps keep the truck from slipping or sliding whenever the truck is operating on slopes, or doing sudden stops.

The overhead guard design offers additional protection from falling objects or debris, while also being rugged enough to stand the test of time. The trucks are also outfitted with an emergency power-off switch that, in the event of an emergency or driver loss of control, will immediately disable power to the vehicle and help prevent accidents.

Operator-Friendly and Ergonomic Design

LF25 and LF30 for operator comfort Both models come with a stand-on platform that is designed for ergonomic and features an optional padded seat for added comfort during long shifts. The control console is smartly placed for the operator to be able to operate the truck with little forces. Reducing operator fatigue also improves productivity, these trucks are designed to handle long-term use in rigorous environments.

The driving position has been developed with human-machine engineering at the core, so all controls are now easy to reach. It’s the sort of intuitive design that minimizes the learning curve for new operators, helping them get up to speed fast.

Strong, Robust, and Long-Lasting Construction

The LF25 and LF30 are stand-on electric reach trucks that offer durable high-strength steel construction and robust design for long-lasting performance. The mast was designed with high-quality channel steel, which is preventing from bending. If you use these trucks on a daily basis, or in the harshest of conditions, you can rest assured that they are built to last.

The American AMP plugs are also waterproof, which helps to eliminate the chance of electrical faults, as well as being designed for use in a moist and wet environment. The PU Wheel type allows the trucks to be used on a variety of surfaces without significant wear, which is why they are great for indoor and outdoor use.

Other Features and Advantages

The LF25 and LF30 also come with electric power steering, which makes it easier to steer the trucks in tight quarters and around obstructions. Mechanical brakes offer better stopping power, to allow the trucks to come to a safe stop more quickly when necessary.

The CURTIS controller is designed to give better functional control of the truck which improves accuracy and reduces operational mistakes. To maximize visibility, especially in busy or low-light conditions, the trucks are also fitted with a warning light system.
