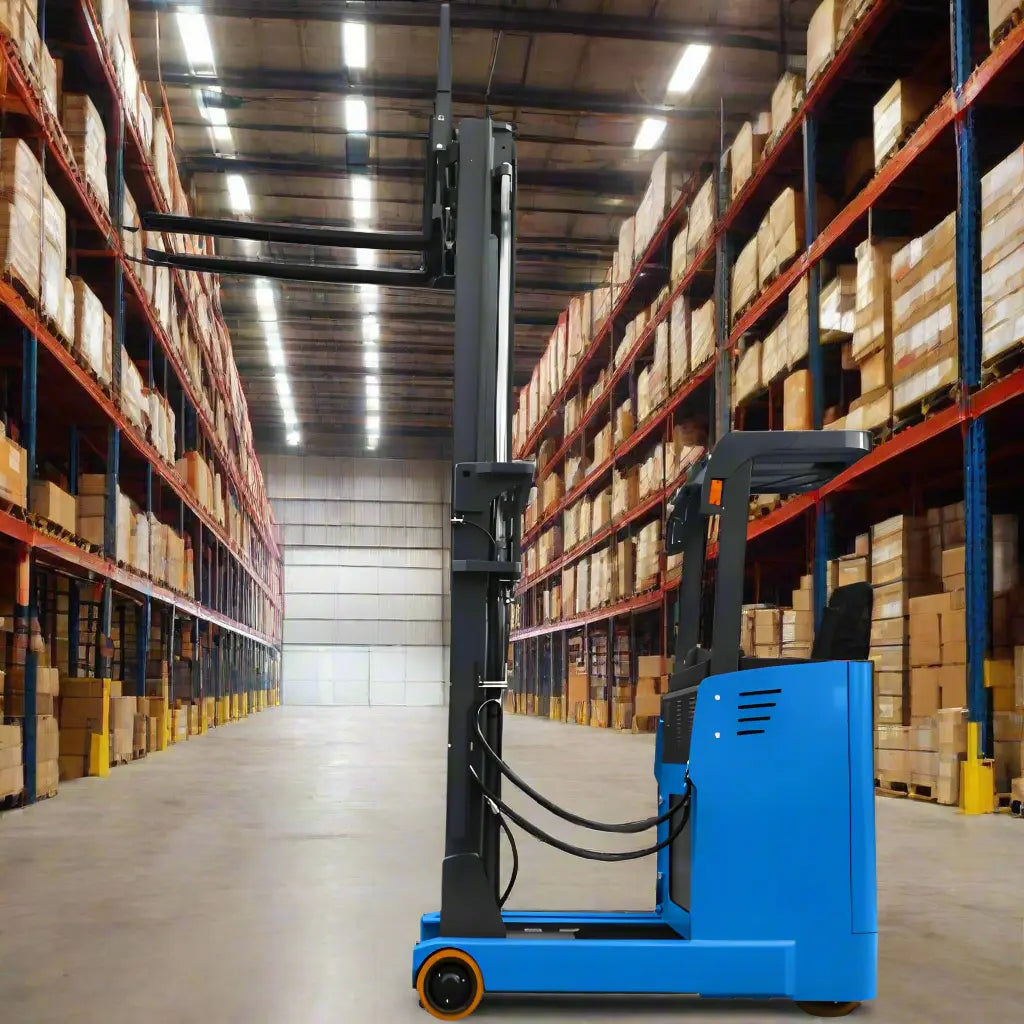

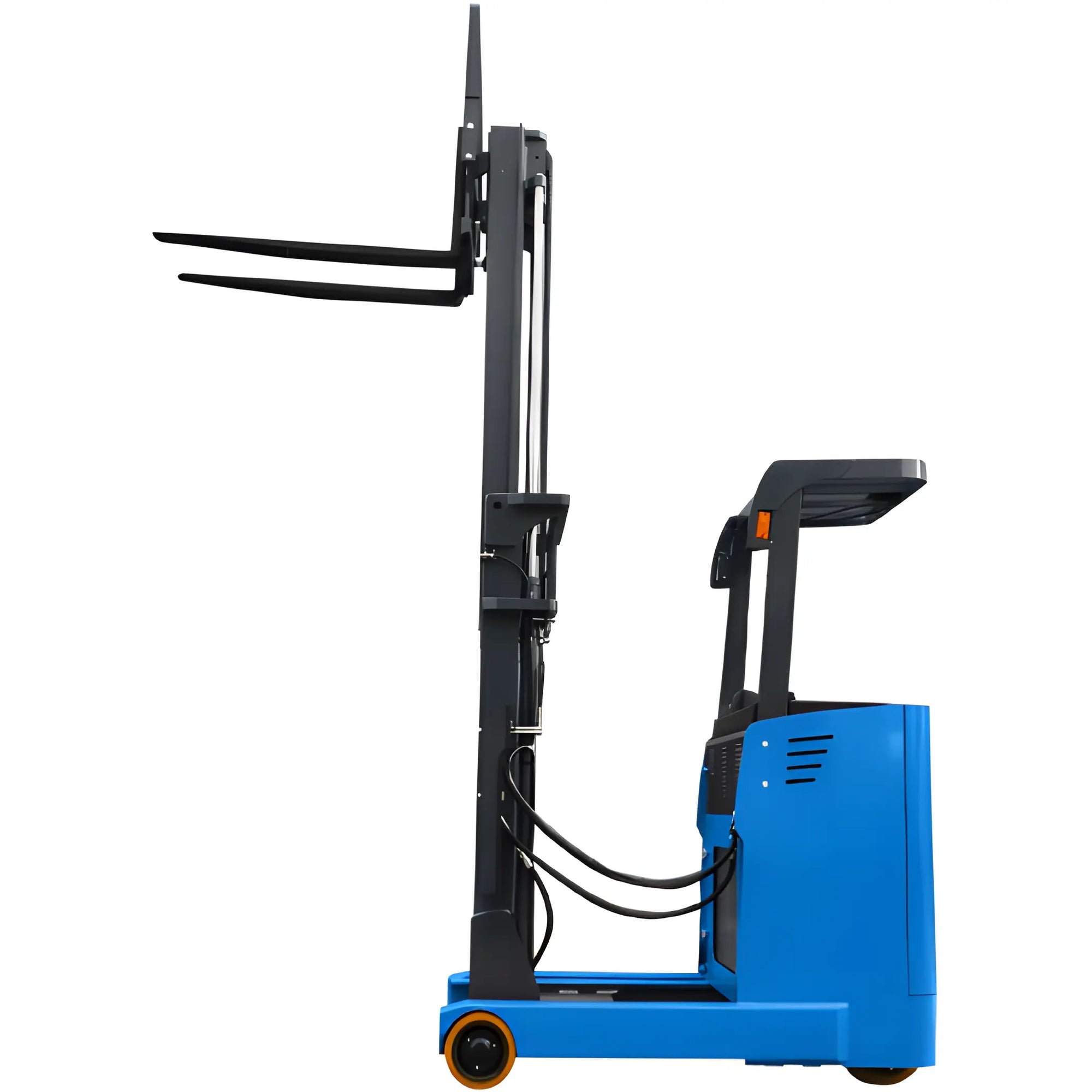

EOSLift LF25/30-Duplex | Electric Stand-Up Movable Mast Truck, 5511 lb / 6613 lb Cap

Stand-On Electric Reach Trucks for Heavy-Duty Material Handling

To meet varying warehouse applications, the LF25 and LF30 stand-on electric reach trucks are designed for safe and easy material handling, providing up to 6613.87 lbs of capacity with AC motors and electric power steering for dependable and efficient performance.

Features:

• Lifting Capacity: LF25=5511.56 lbs, LF30=6613.87 lbs, machinery offers ultra-heavy task capabilities.
• AC Motors: Low maintenance smooth operation with high efficiency AC drive and lift motors.
• Safety Features: Automatic curve slowdown, anti-skid brake system, and heavy overhead guard for operator protection.
• Comfortable Controls: Chamber for outfitting with a cushioned seat, stand-on platform, and multiuse console.
• Heavy Duty Construction: Adopting high-strength steel, waterproof components, and PU wheels, for durable.

Product Description:

THE LF25 AND LF30 stand-on electric reach trucks are built for delivering the robust, effective and secure material handling performance businesses require. Designed to handle the toughest requirements, these reach trucks can stand up to warehouse and distribution centers as well as other industrial environments. Their high lifting capacity, safety features, and ergonomic design make for an all-in-one solution for moving materials.

High Rated Capacity for Heavy Loads:

The LF25 and LF30 effortlessly take heavy loads.  Both models are also useful for those industries that involve moving bulky and heavy materials so that you can complete your operations in a timely and safe manner. With load centers of 19.68 inches, both models provide optimal load distribution and stability during opera­tion.

Improved Performance from AC Motors:

The LF25 and LF30 feature high-performance AC motors that are both compact and efficient. The power of the AC drive motor is 4.5 kW and power of lifting motor is 7.5 kW. With an AC motor design requiring less to no maintenance as to those of DC motors, it will have a longer service life and standby time which in turn saves operational costs of your enterprise.

It features a vertical gear hydraulic system that is designed for stable and reliable operation. In addition, the use of multi-layer inspections on the oil pump, cylinder, and pipelines can ensure that the hydraulic system is always in the best condition, and the LF25 and LF30 can always run for a long time.

Safety features designed for greater security:

 Safety is the main concern for any material handling equipment. Both models feature automatic deceleration on curves to help prevent accidents by slowing the truck when tackling curves. It increases stability and allows operators to safely drive through narrow openings.

An anti-skid braking system also makes sure that the trucks don't skid on a slope going fully loaded. The sturdy overhead guard also provides operators with protection from overhead objects, making the LF25 and LF30 suited for hazardous environments.

Safety is also increased by the mechanical braking system, assuring that the trucks have the ability to stop quickly whenever necessary. An emergency power-off switch offers an additional layer of safety by cutting off the power during emergencies or when operation is lost.

Operator Platform With Ergonomic & Comfortable Features:

To help with added operator comfort, they designed the LF25 and LF30. Both models offer a stand-on platform with a cushioned seat so operators can maintain an ergonomic posture during extended shifts. To ensure usability and to reduce operator fatigue and enhance efficiency, the control console is placed in proximity to all of the essential functions.

A multifunctional display provides real-time information on the truck’s performance, including battery status, lift height and operational settings. Operators can use the intuitive controls as they would any other process without distraction.

Considering human-machine engineering principles for the driving position, all functions are followed so that they are closer to the driver for ease of operation.

Durability and Reliability:

The LF25 and LF30 are designed for demanding environments, built to stand up to the rigors of daily operations. High-strength steel compound construction and reinforced C-shaped mast channel improve bending resistance and mast rigidity. This rugged design means that the trucks can still perform well even when they've been used heavily.

Systems that use waterproof electrical components like American AMP plugs are well protected against moisture and corrosion, greatly eliminating electrical problems. The PU wheels have been designed for long wear and tear thus these trucks can be used both indoors and outdoors.

Battery replacement rack for easy access to the battery for less down time and greater operation time.

Bonus Functions to improve Efficiency and Convenience:

The LF25 and LF30 also add features that improve overall efficiency and useability. Such as a fork tilt function that helps position the load properly, an intelligent charger which optimizes charging cycles and a warning light system that increases visibility in busy environments.

The CURTIS controller provides fine control of the truck's movements, and the electric power steer making maneuvering easy, even in tight spots. The trucks also have a battery replacement rack — it's easy to swap batteries when needed.
