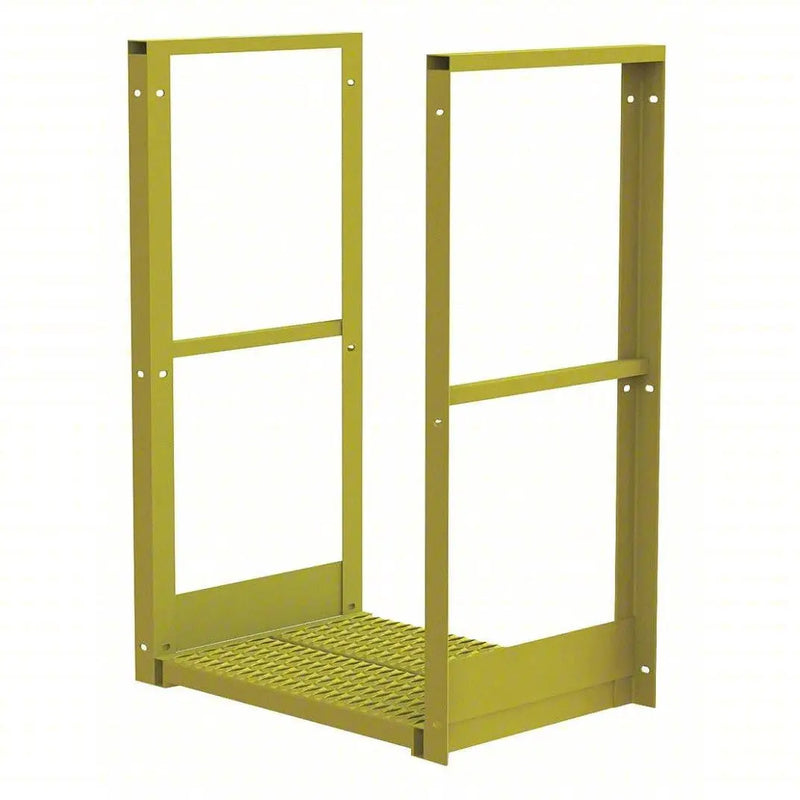

Ballymore Tri-Arc U-Design Bridge Span: 1,000 Lb Load Capacity, Steel, Perforated, 44" Overall Height, 24" Platform Width 20" Platform Length

Original price $441.98 - Original price $441.98
Original price
$441.98
$441.98 - $441.98
Current price $441.98
In stock
SKU UCB20246
Promo Icon

$100 OFF ALL ORDERS $2000 & UP

Use code “WELCOME” at checkout

NEED HELP? CALL US (833) 436-3857

Promo Icon
This Ballymore Tri-Arc U-Design Bridge Span is a crucial component for building a custom industrial crossover. It features a robust, perforated steel platform measuring 24 inches wide by 20 inches long, with an overall height of 44 inches. Engineered to support a 1,000 lb load capacity, this bridge span integrates into a four-step configurable system. You can select incline angles (50, 75, or 90 degrees), stair height, and configuration to create the perfect solution.

Product Overview

Ballymore Tri-Arc U-Design Bridge Span: 1,000 Lb Load Capacity, Steel, Perforated, 44" Overall Height, 24" Platform Width 20" Platform Length: Built for Demanding Industrial Work

The Ballymore Tri-Arc U-Design Bridge Span is the central component for creating a safe and efficient industrial crossover tailored to your specific needs. This robust steel span provides a stable connection over obstacles, supporting up to 1,000 lbs. It features a perforated platform measuring 24 inches wide by 20 inches long, with an overall height of 44 inches. As part of a fully modular system, this bridge allows you to design the perfect elevated walkway for your application.

This bridge span is a key part of a simple, four-step process to build the ideal crossover. Start by selecting the incline that best fits your space and access needs. Choose from three distinct options: a 50-degree safety angle incline that offers the largest footprint, a 75-degree rear descent for a more compact footprint, or a 90-degree vertical descent for the smallest possible footprint. After choosing your incline, you select the required stair height, followed by the bridge span, and finally, the overall system configuration.

Key Features:

  • Heavy-Duty Support: Engineered to safely handle a load capacity of 1,000 lbs.
  • Durable Steel Build: Constructed from rugged steel with a perforated surface for enhanced traction and longevity.
  • Generous Work Platform: Provides a 24-inch wide by 20-inch long platform for stable footing.
  • Component Dimensions: Features an overall height of 44 inches.
  • Modular Crossover Component: Serves as the bridge span for the versatile Ballymore Tri-Arc U-Design Industrial Crossover system.
  • Four-Step Customization: Integrates into a simple process to create a tailored crossover solution for your facility.
  • Variable Incline Choices: The full system accommodates three incline angles: a 50-degree safety incline, a 75-degree rear descent, or a 90-degree vertical descent.

Specs at a Glance:

  • Brand: Ballymore
  • Product Line: Tri-Arc U-Design
  • Load Capacity: 1,000 Lb
  • Material: Steel
  • Platform Surface: Perforated
  • Overall Height: 44"
  • Platform Width: 24"
  • Platform Length: 20"
Specification Table

Specification:

BrandBallymore
Product LineTri-Arc U-Design
Load Capacity1,000 Lb
MaterialSteel
Platform SurfacePerforated
Overall Height44"
Platform Width24"
Platform Length20"
