All Lift H-Series Half Ton Jib Crane – Heavy Duty Floor Mounted
Features:
-
Heavy Wall Structural Steel Mast — Reinforced base plate reduces deflection for constant alignment.
-
360° Rotating I-Beam: The innovative tapered flange design allows such trolley to traverse the span more smoothly.
-
End Stops: Prevents undue trolley movement.
-
36” D Base Plate: 32” bolt circle with 12 x 1¾” holes for stable mounting.
-
Long-Lasting: Designed for extended use in challenging conditions.
Product Description

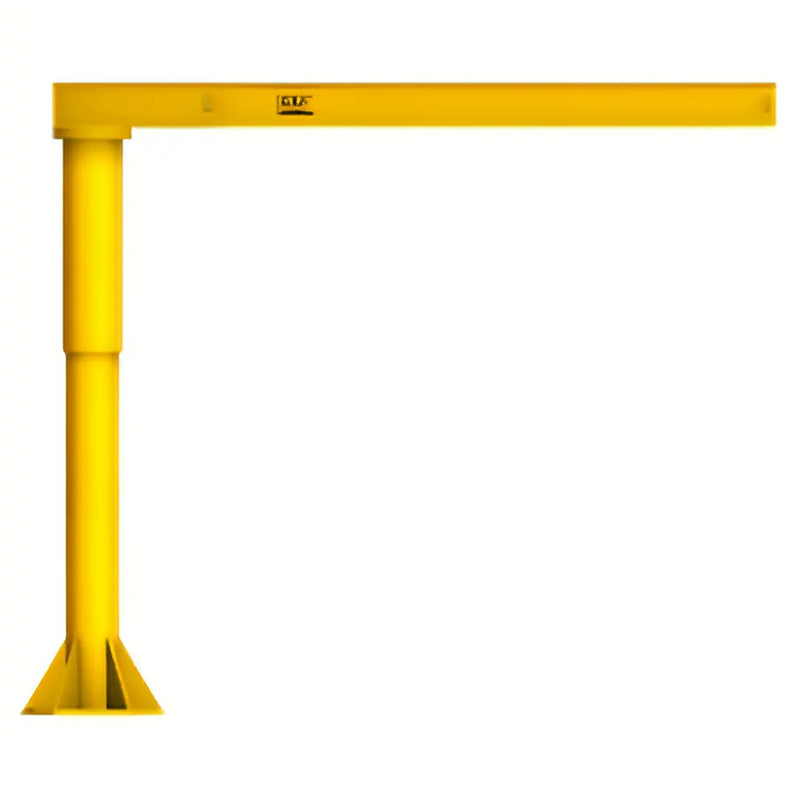

The Half Ton H-Series Jib Crane, Heavy Duty, Floor Mount, Fully Adjustable by All Lift Cranes. Built with a heavy wall structural steel pipe mast and plate base, this crane minimizes deflection while continuously aligning under full ½-ton loads. Its 360° rotating rolled steel I-beam comes with a tapered flange for easy trolley travel, providing efficient material handling in warehouses, manufacturing facilities, and workshops.
The Uncompromised Design for Harsh Environments
Design for Heavy Duty Applications With a heavy duty 36" diameter base plate and 32" bolt circle, it has a designated ruggedness. The 12 x 1¼” mounting holes allow for secure anchoring of the boom, and safety end stops on both ends of the boom limit trolley travel, preventing overextension and increasing workplace safety.
Flexible Range and Applications

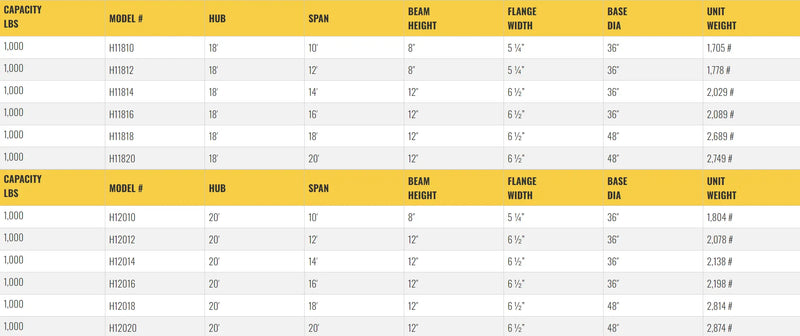

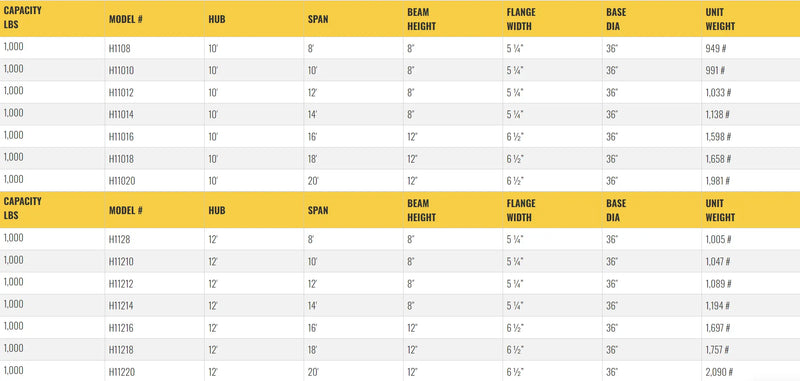

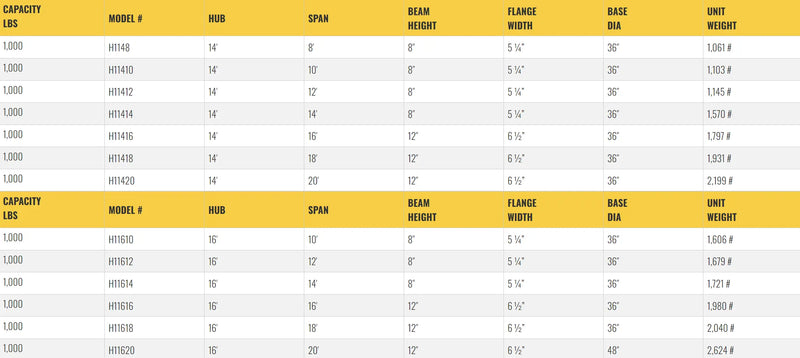

This crane features a HUB (Height Under Beam) range of 10’ to 20’ and span (column center to beam end) of 8’ to 20’, making it adaptable to varied workspace configurations. It’s great for tasks that need repetitive lifting, such as:
- Machine loading/unloading
- Equipment for material handling on assembly lines
- Explain why you need maintenance and repair operations
- Warehouse management and inventory control
- Pre-requisites for Installation and Foundation
Mechanical Requirement: The Heavy Duty Floor Mounted Jib Crane requires a 3' deep cement foundation 4'x4', 5'x5' or 6'x6' reinforced by ¾" diameter rebar spaced 12" on center. It is advisable to have a compressive strength of 3,000 psi. Local geotechnical engineer to confirm foundation requirements for your land.
Additional Features for Increased Functionality
Customize your crane with:
-
Tagline Kits: with S-Hooks For controlled load positioning
-
Collector Rings (Top/Bottom Entry): 360° rotation without power interruption for electric hoists
-
Motorized Rotation: Move the beam automatically for efficient operation.
-
Bolt Pattern Sheets: Practical templates for install precision.
Safety and Compliance
The tapered flange I-beam of the crane minimizes resistance to trolley travel and the safety end stops protect from iffy overtravel. Suitable for use indoors and outdoors (stainless steel versions available) is compliant with industrial safety standard, and excellent performance can be provided and reliable operation in bad environments.
Technical Definitions
-
Collector ring: Hold the power cord to ensure uninterrupted 360° rotation.
-
HUB: Height Under Beam (distance from floor to beam).
-

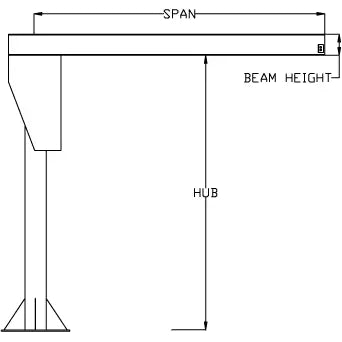

Length: Distance between column face to beam end.
Ground Cranes: All Lift Cranes Heavy Duty Floor Mounted Jib Crane will definitely organize your lifting work, make your work more secure and time-efficient. Rugged, with customizable options, the ZUBR is the go-to solution for industrial material handling across the globe.
